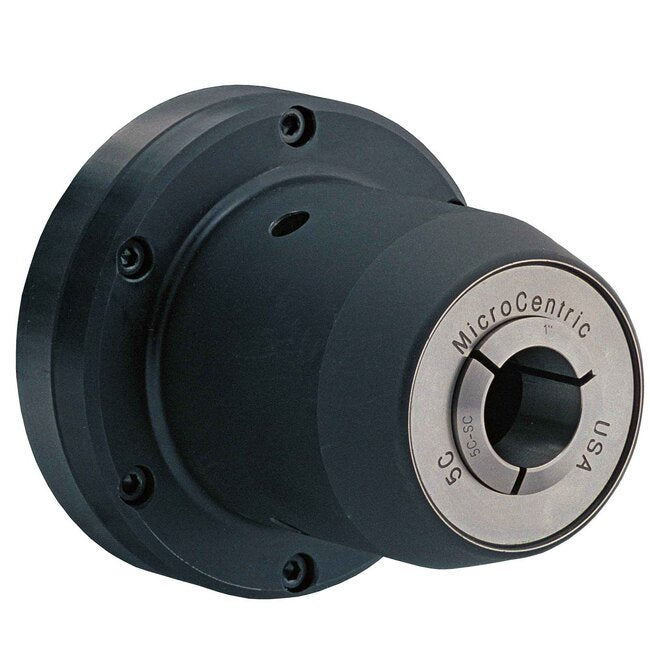

The 5C-D Dead Length Collet Chucks are designed with precision and efficiency in mind, featuring a dead length design with reduced diameter mounting ideal for smaller machines and rotary tables. Crafted from hardened alloy steel, all components are precision ground to ensure accuracy and long-term performance. Internal components are sealed to prevent chip accumulation, enhancing the chuck's durability. With a modular design adaptable to various machine spindles and draw tube configurations, these collet chucks offer versatility and reliability for machining operations.
Product Specifications

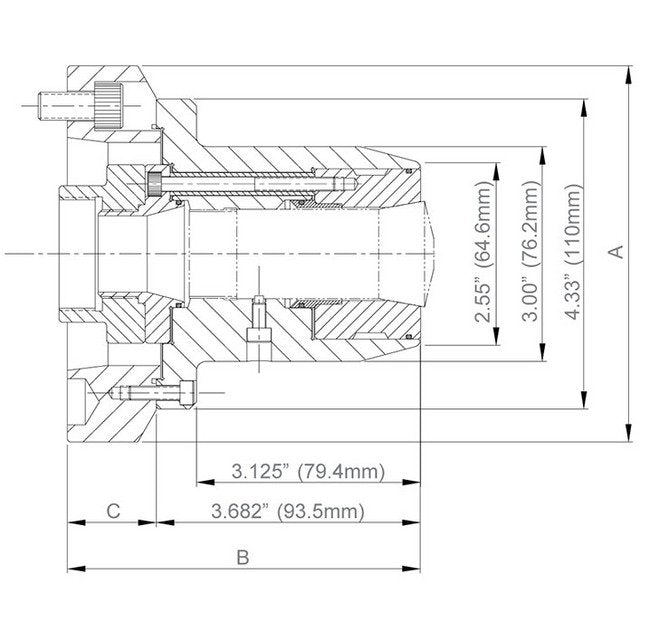

Specifications A Dimension
4.330 in | 10 mm
Specifications B Dimension
4.620 in | 117.3 mm
Specifications Chuck Weight
8.9 lb | 4 kg
Specifications Collet Model
5C
Specifications C Dimension
0.938 in | 23.8 mm
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
110mm
Specifications Through Capacity
1.062 in | 27 mm
