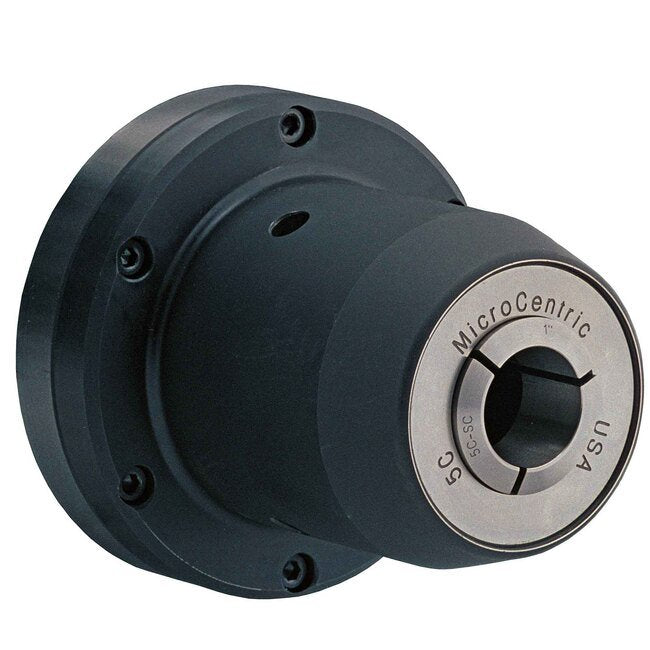

The 5C-D Dead Length Collet Chucks are engineered with a dead-length design featuring reduced diameter mounting, ideal for smaller machines and rotary tables. Crafted from hardened alloy steel, these chucks ensure precision and durability. Sealed internal components prevent chip accumulation, maintaining peak performance. With a modular design adaptable to various machine spindles and draw tube configurations, these chucks offer versatility for machining operations requiring high accuracy.
Product Specifications

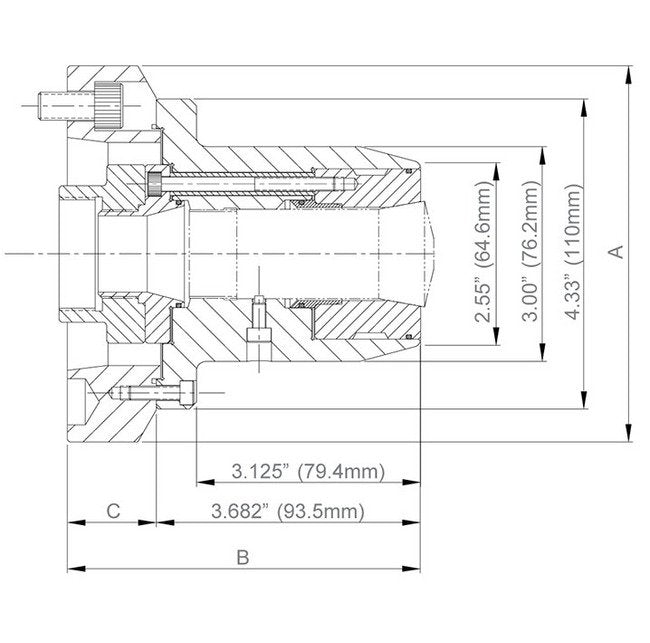

Specifications A Dimension
4.330 in | 10 mm
Specifications B Dimension
4.620 in | 117.3 mm
Specifications Chuck Weight
8.9 lb | 4 kg
Specifications Collet Model
5C
Specifications C Dimension
0.938 in | 23.8 mm
Specifications Item No
35 100 040
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-4
Specifications Through Capacity
1.062 in | 27 mm
