5C-D Dead Length Collet Chucks - Precision Alloy Steel Chuck for Small Machines
5C-D Dead Length Collet Chucks - Precision Alloy Steel Chuck for Small Machines
SKU:CON-779dc8
Precision 5C-D Dead Length Collet Chuck for small machines, offering accuracy and reliability for versatile machining applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
5C-D Dead Length Collet Chucks - Precision Alloy Steel Chuck for Small Machines
$249.99
Quantity: 1
Claim Your Seller Account
5C-D Dead Length Collet Chucks - Precision Alloy Steel Chuck for Small Machines
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

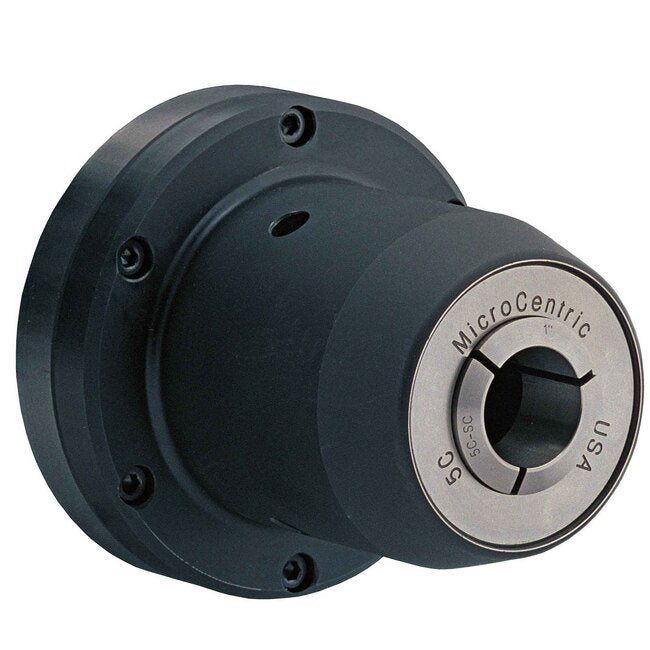

The 5C-D Dead Length Collet Chuck is engineered with a dead length design and reduced diameter mounting, ideal for smaller machines and rotary tables. Crafted from hardened alloy steel, all components are precision ground to ensure exceptional accuracy and long-term performance. With sealed internal components to prevent chip accumulation, this modular chuck design is adaptable to any machine spindle and draw tube configuration, offering versatility and reliability for a wide range of machining applications.

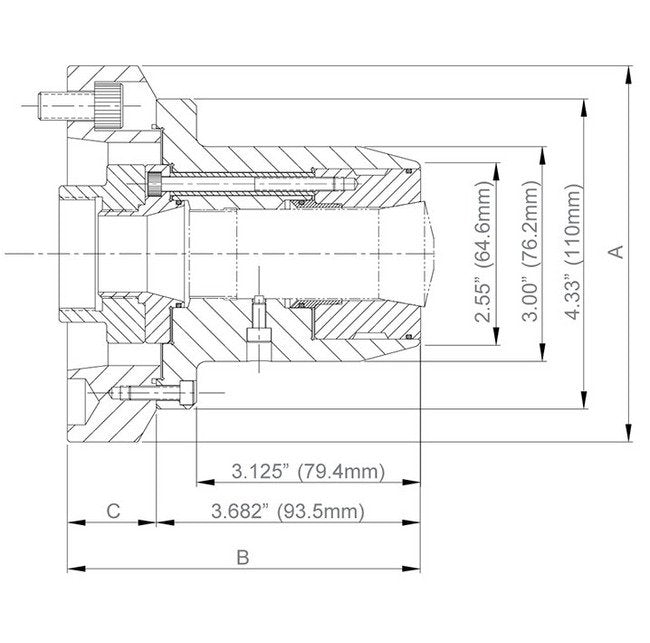

Product Specifications
Specifications A Dimension
5.250 in | 33.4 mm
Specifications B Dimension
4.920 in | 125 mm
Specifications Chuck Weight
10.0 lb | 4.4 kg
Specifications Collet Model
5C
Specifications C Dimension
1.238 in | 31.4 mm
Specifications Item No
35 100 039
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-5
Specifications Through Capacity
1.062 in | 27 mm
