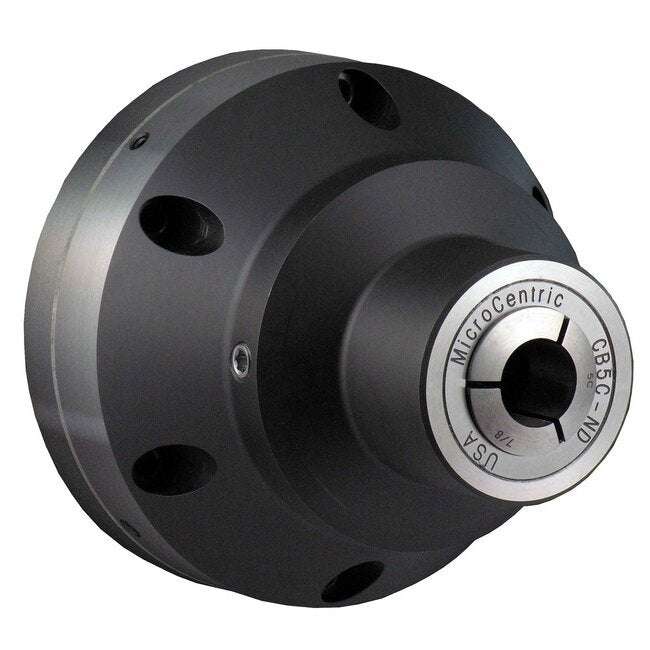

5C-ND Dead Length Collet Chuck for Full Size Machines
5C-ND Dead Length Collet Chuck for Full Size Machines
SKU:CON-b36952
Enhance machining accuracy with the 5C-ND Dead Length Collet Chuck, designed for full-size machines with precision and durability.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
5C-ND Dead Length Collet Chuck for Full Size Machines
$289.99
Quantity: 1
Claim Your Seller Account
5C-ND Dead Length Collet Chuck for Full Size Machines
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5C-ND Dead Length Collet Chuck is designed for precise and efficient machining on full-size machines and sub spindles. Crafted from hardened alloy steel, this chuck features a dead length design with a reduced nose, ensuring unparalleled accuracy and long-term performance. Sealed internal components prevent chip accumulation, while the modular design allows seamless adaptation to various machine spindles and draw tube configurations. With a collet model of 5C, A2-5 spindle nose, and a maximum speed of 6,000 rpm, this chuck offers a through capacity of 1.062 inches and a linear chuck stroke of 0.078 inches.

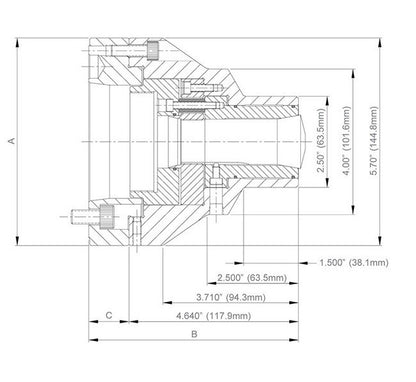

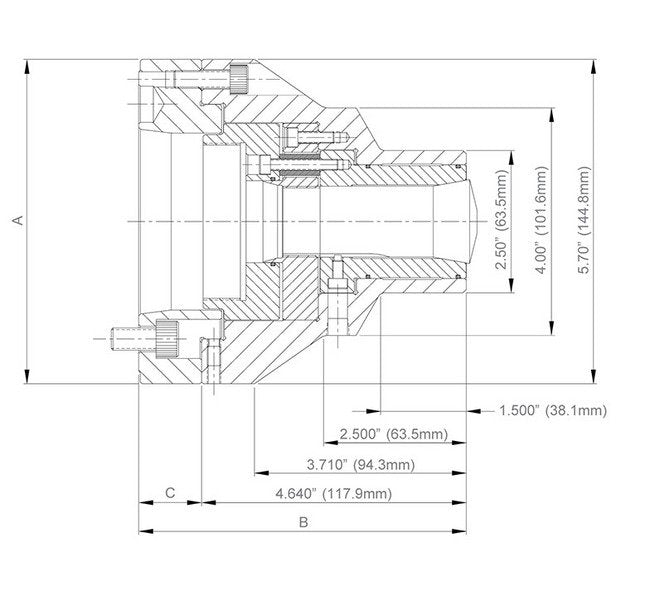

Product Specifications
Specifications A Dimension
5.700 in | 144.8 mm
Specifications B Dimension
5.740 in | 145.8 mm
Specifications Chuck Weight
15.1 lb | 6.7 kg
Specifications Collet Model
5C
Specifications C Dimension
1.100 in | 27.9 mm
Specifications Item No
35 100 100
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-5
Specifications Through Capacity
1.062 in | 27 mm
