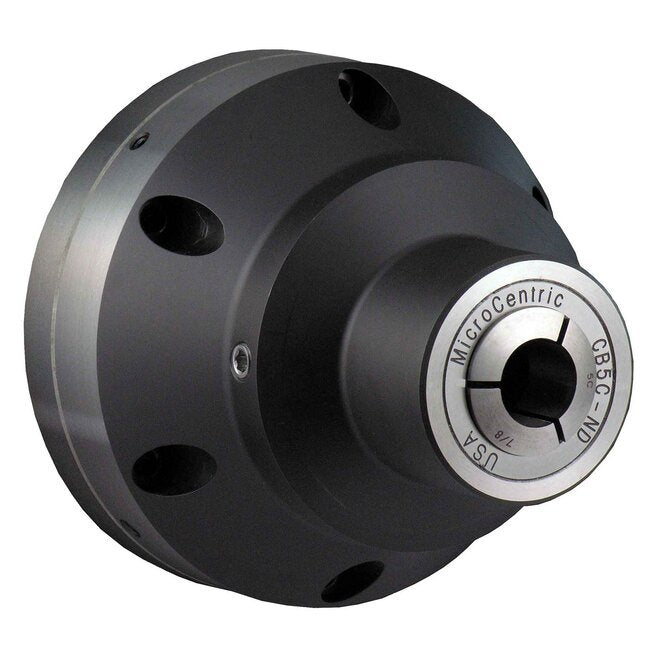

5C-ND Dead Length Collet Chucks for Full Size Machines
5C-ND Dead Length Collet Chucks for Full Size Machines
SKU:CON-b706ba
Precision engineered 5C-ND Dead Length Collet Chucks for full size machines, with hardened alloy steel components and chip-sealed design for long-lasting performance.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
5C-ND Dead Length Collet Chucks for Full Size Machines
$599.99
Quantity: 1
Claim Your Seller Account
5C-ND Dead Length Collet Chucks for Full Size Machines
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining operations with our 5C-ND Dead Length Collet Chucks specifically designed for full size machines and sub spindles. Constructed from hardened alloy steel precision ground components, these collet chucks ensure accuracy and long-term performance. With a sealed design to prevent chip accumulation, modular chuck adaptability, and compatibility with various spindle and draw tube configurations, these chucks offer versatility and efficiency in your industrial applications.
Product Specifications

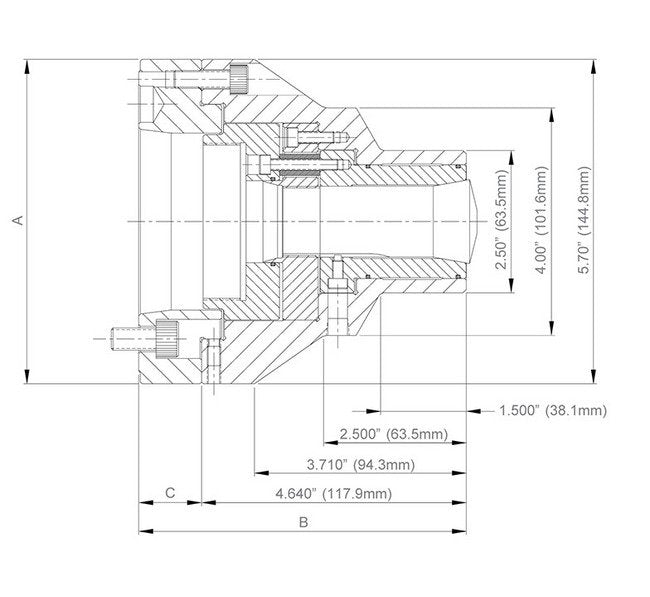

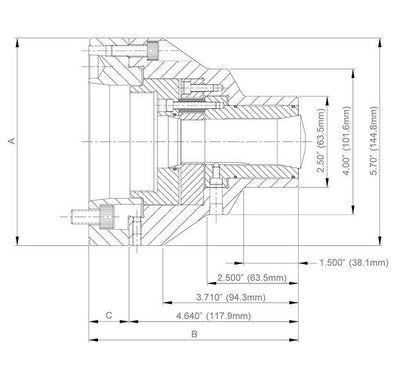

Specifications A Dimension
6.480 in | 164.6 mm
Specifications B Dimension
5.640 in | 143.3 mm
Specifications Chuck Weight
15.3 lb | 6.8 kg
Specifications Collet Model
5C
Specifications C Dimension
1.000 in | 31.4 mm
Specifications Item No
35 100 102
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-6
Specifications Through Capacity
1.062 in | 27 mm
