5C-ND Dead Length Collet Chucks - Precision Holding for Machinery
5C-ND Dead Length Collet Chucks - Precision Holding for Machinery
SKU:CON-18a664
Enhance precision and efficiency with 5C-ND Dead Length Collet Chucks. Hardened alloy steel construction, modular design for adaptability, and sealed internal components.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
5C-ND Dead Length Collet Chucks - Precision Holding for Machinery
$699.99
Quantity: 1
Claim Your Seller Account
5C-ND Dead Length Collet Chucks - Precision Holding for Machinery
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5C-ND Dead Length Collet Chucks are engineered with a dead-length design and a reduced nose, ideal for full-size machines and sub spindles. Crafted from hardened alloy steel, these chucks deliver precision performance over the long term. Featuring internal components that are sealed to prevent chip accumulation, and a modular design adaptable to various machine spindle and draw tube configurations, these collet chucks ensure reliability and versatility in machining processes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

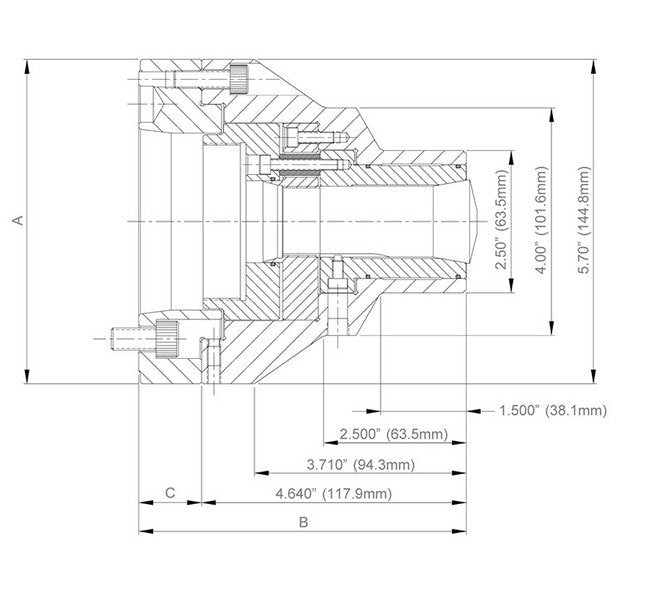

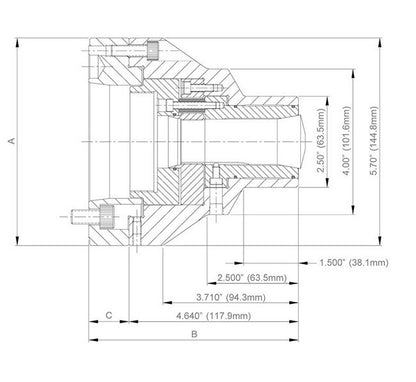

Specifications A Dimension
7.950 in | 201.9 mm
Specifications B Dimension
6.260 in | 159 mm
Specifications Chuck Weight
23.5 lb | 10.4 kg
Specifications Collet Model
5C
Specifications C Dimension
1.620 in | 41.1 mm
Specifications Item No
35 100 118
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-8
Specifications Through Capacity
1.062 in | 27 mm
