5C-ND Dead Length Collet Chucks - Precision Performance for Machining Needs
5C-ND Dead Length Collet Chucks - Precision Performance for Machining Needs
SKU:CON-ef9224
Enhance machining precision with the 5C-ND Dead Length Collet Chucks. Precision ground alloy steel components for reliable and accurate performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
5C-ND Dead Length Collet Chucks - Precision Performance for Machining Needs
$399.99
Quantity: 1
Claim Your Seller Account
5C-ND Dead Length Collet Chucks - Precision Performance for Machining Needs
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

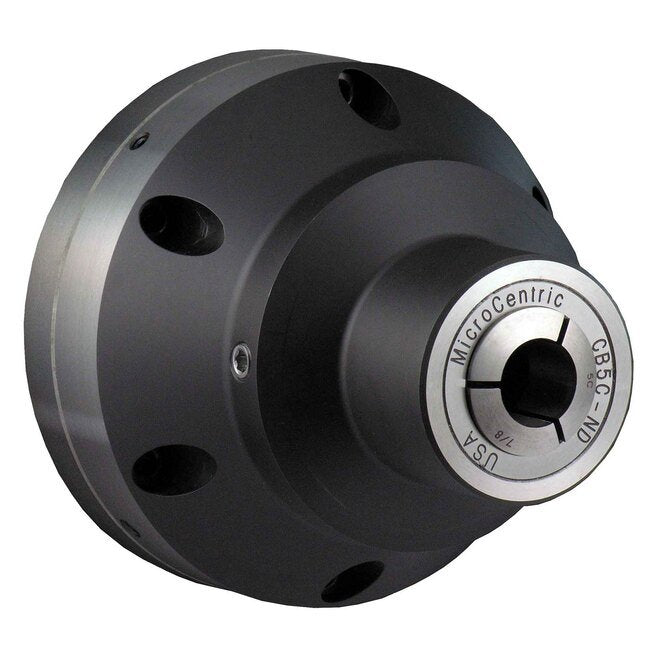

The 5C-ND Dead Length Collet Chucks are designed for maximum precision and efficiency in machining operations. With a dead length design featuring a reduced nose suitable for full-size machines and sub spindles, these chucks guarantee unparalleled accuracy and long-term performance. Crafted from hardened alloy steel, all components are precision ground to ensure top-notch quality. The sealed internal components prevent chip accumulation inside the chuck body, while the modular design allows for seamless adaptation to various machine spindles and draw tube configurations. Experience superior machining results with these versatile and durable collet chucks.
Product Specifications

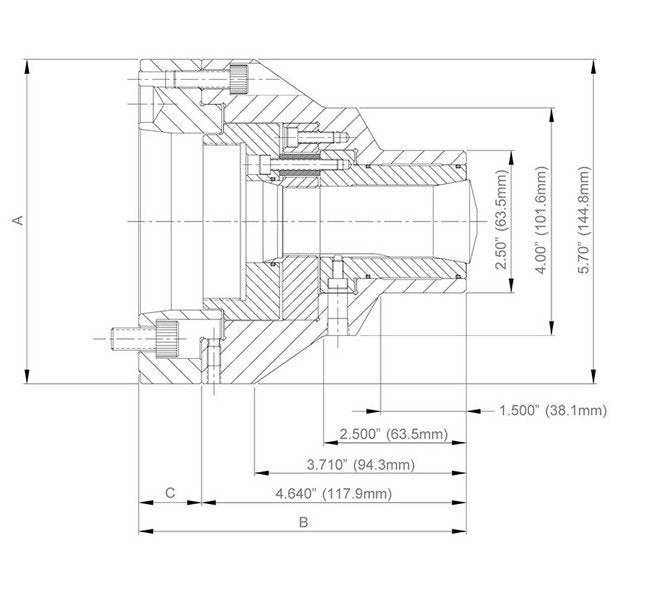

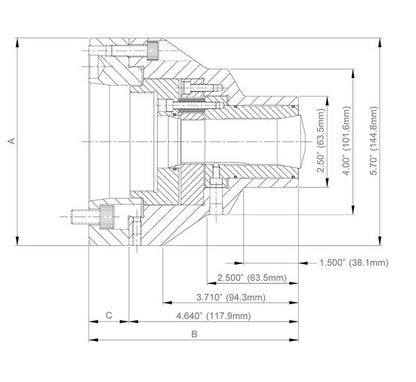

Specifications A Dimension
5.700 in | 144.8 mm
Specifications B Dimension
5.740 in | 145.8 mm
Specifications Chuck Weight
15.1 lb | 6.7 kg
Specifications Collet Model
5C
Specifications C Dimension
1.100 in | 27.9 mm
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
140mm
Specifications Through Capacity
1.062 in | 27 mm
