5mm x 55mm UM12 Grade Solid Carbide Rod with Chamfer

Name: 5mm x 55mm UM12 Grade Solid Carbide Rod with Chamfer
Brand: Ultra-Met
SKU: SOL-307771
Price: 29.99 USD
Availability: OutOfStock

SKU:SOL-307771

Enhance precision machining with our 5mm x 55mm UM12 Grade Solid Carbide Rod for superior wear resistance and h6 ISO tolerance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

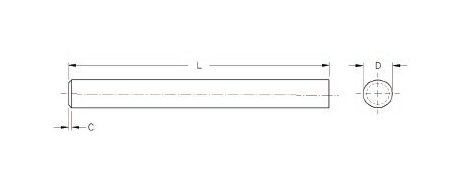

Meet your most demanding machining needs with our 5.00mm diameter and 55.0mm length UM12 Grade Metric Precision Ground Solid Carbide Rod featuring a polished finish, 45° x 0.3mm chamfer, and h6 ISO tolerance. This carbide rod is ideal for precision tooling, offering high wear resistance and exceptional performance. With a stringent length tolerance of L+1% (+0.5mm), this rod ensures consistent quality for industrial applications.

Product Specifications

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM6

Classifications Chamfer

45Âº x 0.3 mm

Classifications Chamfer Tolerance

0.1 mm

Classifications Diameter

5.00 mm

Classifications Finish

Polished

Classifications International Organization For Standardization I

Classifications Length

55.0 mm

Classifications Length Tolerance

L+1% (+0.5 Minimum)

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

0.019127011 Kilogram
