5W Wide Opening Collet Chuck - Precision Grip for Versatile Machining
5W Wide Opening Collet Chuck - Precision Grip for Versatile Machining
SKU:WID-8ce059
Achieve precision machining with the 5W Wide Opening Collet Chuck. Grip securely over the shoulder of parts for efficient performance.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
5W Wide Opening Collet Chuck - Precision Grip for Versatile Machining
$549.99
Quantity: 1
Claim Your Seller Account
5W Wide Opening Collet Chuck - Precision Grip for Versatile Machining
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

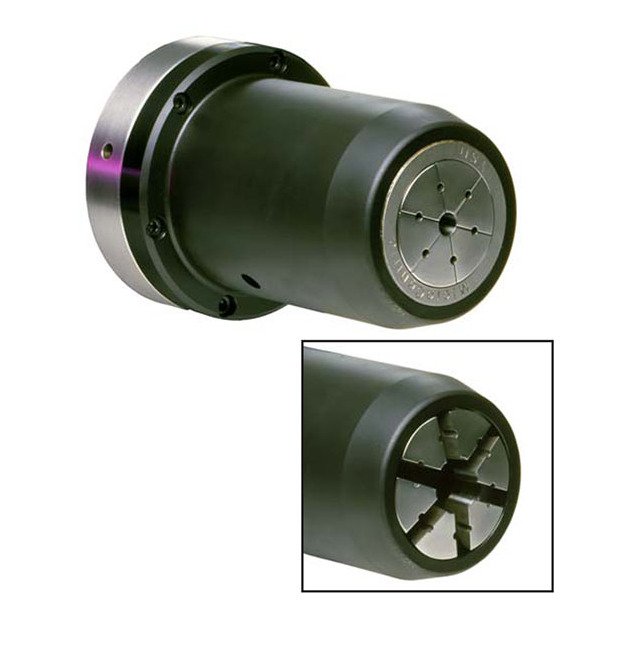

Experience precise gripping with our 5W Wide Opening Collet Chuck. Designed for accuracy and durability, this chuck features a wide opening to grip over the shoulder of headed parts. With a max speed of 6,000 rpm and a through capacity of 1.062 inches, it ensures efficient machining. The chuck components are hardened alloy steel, providing long-term performance. Sealed internal components prevent chip accumulation, promoting a clean working environment. Adapt this modular chuck to fit various machine spindle and draw tube configurations for seamless integration.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

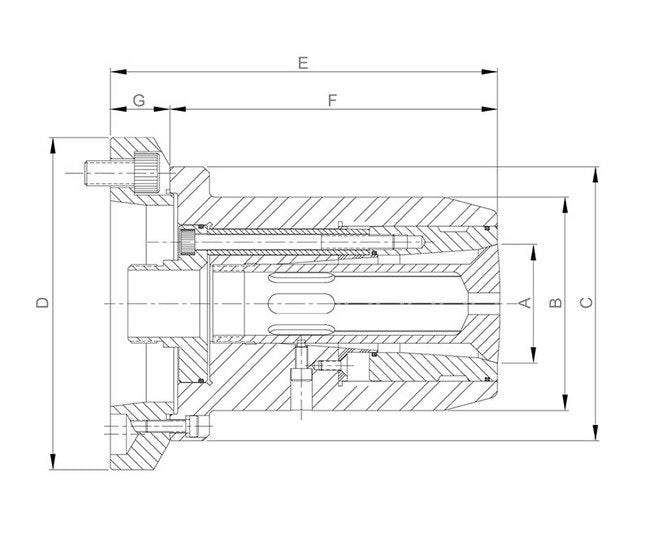

Specifications A Dimension
1.875 in | 47.6 mm
Specifications B Dimension
3.375 in | 85.7 mm
Specifications Chuck Weight
13.4 lb | 6 kg
Specifications Collet Model
5W
Specifications C Dimension
4.330 in | 110 mm
Specifications D Dimension
4.330 in | 110 mm
Specifications E Dimension
6.120 in | 155.4 mm
Specifications F Dimension
5.182 in | 131.6 mm
Specifications G Dimension
0.938 in | 23.8 mm
Specifications Item No
35 100 030
Specifications Linear Chuck Stroke
.370 in | 9.4 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-4
Specifications Through Capacity
1.062 in | 27 mm
