5W Wide Opening Collet Chucks for Precision Machining
5W Wide Opening Collet Chucks for Precision Machining
SKU:WID-28f050
Optimize precision machining with 5W Wide Opening Collet Chucks - perfect for accurate gripping of headed parts.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
5W Wide Opening Collet Chucks for Precision Machining
$259.99
Quantity: 1
Claim Your Seller Account
5W Wide Opening Collet Chucks for Precision Machining
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

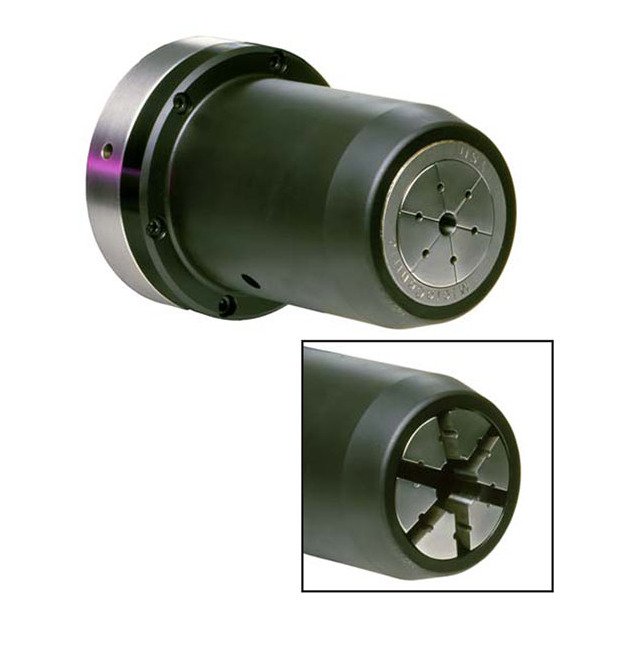

The 5W Wide Opening Collet Chucks are meticulously engineered for precision gripping of headed parts with absolute accuracy. Designed with a wide opening of up to .394 inches (10mm) above the nominal clamping diameter, these chucks feature a six-segmented double angle design collet with an ID thread for mounting part stops or ejectors. Crafted from hardened alloy steel, the chuck components are precision ground to ensure long-term performance. With sealed internal components to prevent chip accumulation, this modular chuck design can seamlessly adapt to any machine spindle and draw tube configuration, guaranteeing optimal machining results.

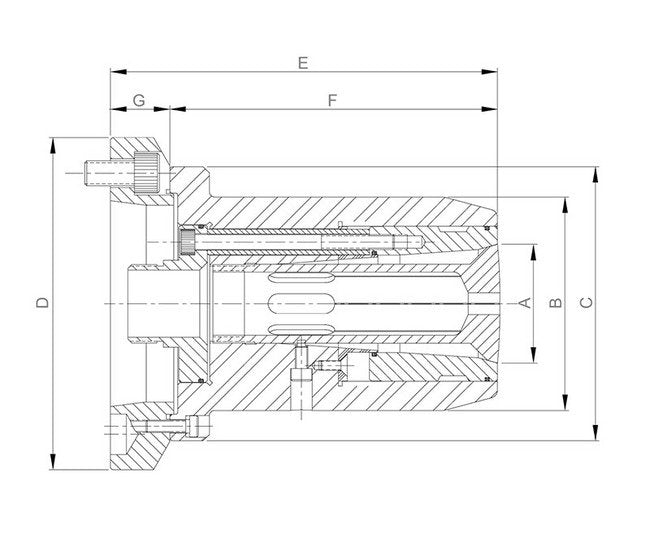

Product Specifications
Specifications A Dimension
1.875 in | 47.6 mm
Specifications B Dimension
3.375 in | 85.7 mm
Specifications Chuck Weight
14.6 lb | 6.5 kg
Specifications Collet Model
5W
Specifications C Dimension
4.330 in | 110 mm
Specifications D Dimension
5.250 in | 133.4 mm
Specifications E Dimension
6.120 in | 155.4 mm
Specifications F Dimension
5.182 in | 131.6 mm
Specifications G Dimension
0.938 in | 23.8 mm
Specifications Item No
35 100 064
Specifications Linear Chuck Stroke
.370 in | 9.4 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-5
Specifications Through Capacity
1.062 in | 27 mm
