High-performance 5W Wide Opening Collet Chucks for precision machining applications. Max speed: 6,000 rpm, Through capacity: 1.062 in.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
5W Wide Opening Collet Chucks - Precision Industrial Tools
$549.99
Quantity: 1
Claim Your Seller Account
5W Wide Opening Collet Chucks - Precision Industrial Tools
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

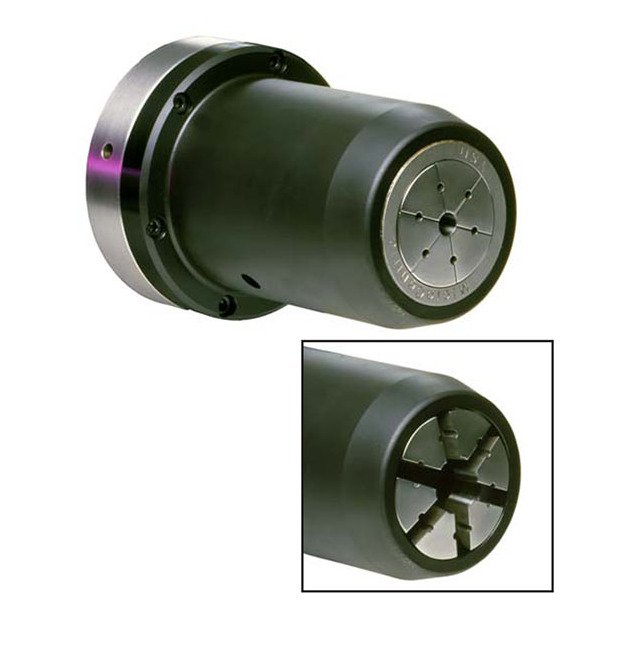

The 5W Wide Opening Collet Chucks offer unmatched precision and versatility for gripping over the shoulder of headed parts. With a maximum speed of 6,000 rpm and through capacity of 1.062 inches, these collet chucks are designed for high-performance machining operations. The chuck components are meticulously crafted from hardened alloy steel for long-term accuracy and performance. Their modular design enables seamless adaptation to various machine spindle and draw tube configurations, ensuring compatibility across a wide range of applications. Internal components are sealed to prevent chip accumulation, enhancing operational longevity and efficiency. Ideal for industrial settings requiring reliable and precise clamping solutions.
Product Specifications

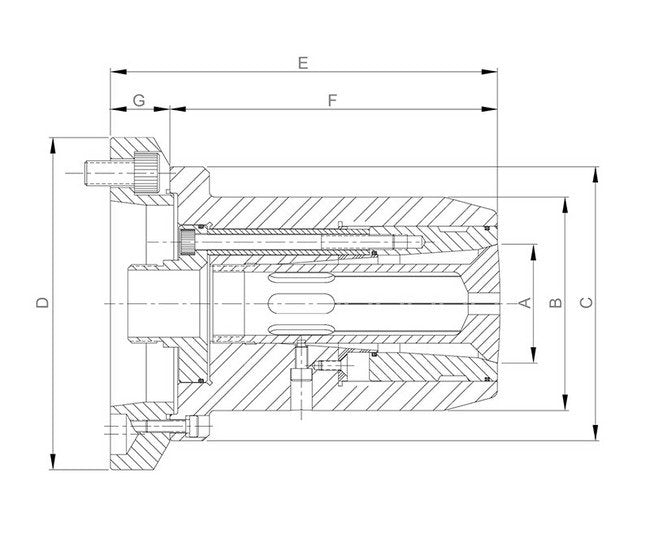

Specifications A Dimension
1.875 in | 47.6 mm
Specifications B Dimension
3.375 in | 85.7 mm
Specifications Chuck Weight
14.6 lb | 6.5 kg
Specifications Collet Model
5W
Specifications C Dimension
4.330 in | 110 mm
Specifications D Dimension
5.250 in | 133.4 mm
Specifications E Dimension
6.120 in | 155.4 mm
Specifications F Dimension
5.182 in | 131.6 mm
Specifications G Dimension
0.938 in | 23.8 mm
Specifications Item No
35 100 057
Specifications Linear Chuck Stroke
.370 in | 9.4 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
140mm
Specifications Through Capacity
1.062 in | 27 mm
