5x3 Base Spacer for Underground Ducts
5x3 Base Spacer for Underground Ducts
SKU:CON-922a5c
Secure and align underground ducts easily with our 5x3 Base Spacer. Fast assembly, no banding needed.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
5x3 Base Spacer for Underground Ducts
$99.99
Quantity: 1
Claim Your Seller Account
5x3 Base Spacer for Underground Ducts
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

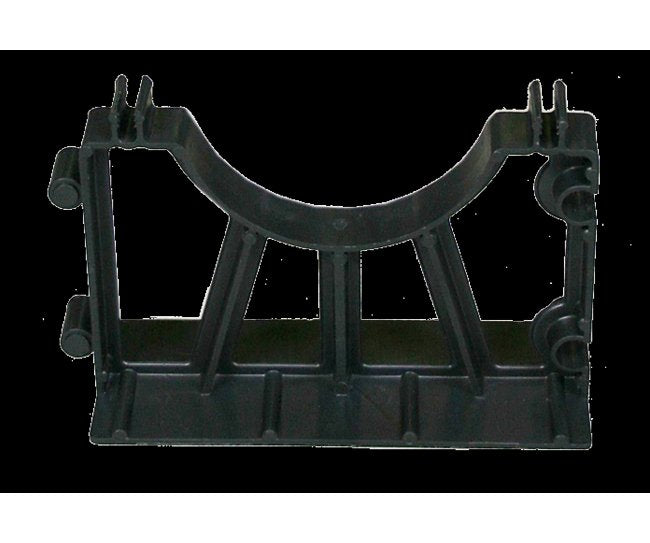

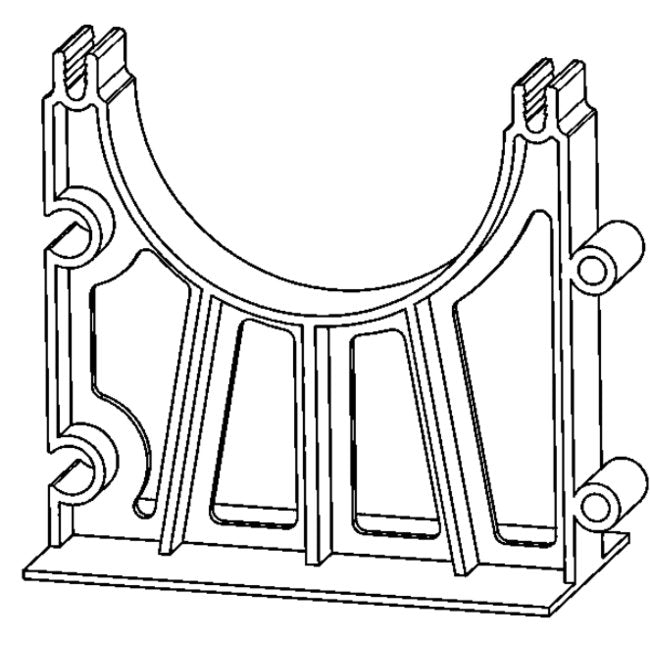

The 5x3 Base Spacer is a crucial component in securing underground duct banks with its modular and interlocking design. This single base spacer ensures the alignment and support of duct sections, eliminating the need for banding. Fast and secure field assembly is guaranteed with only two components required, the base and intermediate spacers. Designed to prevent separation, these spacers lock firmly together both vertically and horizontally. Compliant with industry standards, this spacer integrates seamlessly into both EB and DB installations, offering efficient duct separation with precision and stability.
Product Specifications
Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
5 in
Specifications Pipe Separation
3 in
Specifications Short Description
GSB5X300192 SPACER BASE 5X3
Specifications Standard Pack
100
Specifications Type
Single Base Spacer
Specifications Weight
33 lb
