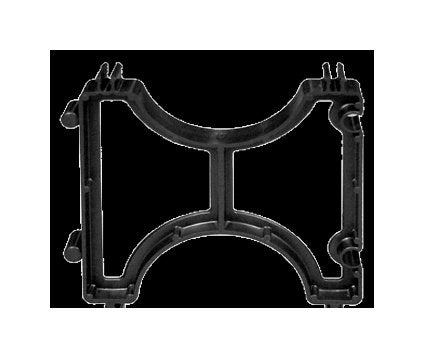

5x3 Intermediate Spacer - Underground Duct Spacer for Conduit Systems
5x3 Intermediate Spacer - Underground Duct Spacer for Conduit Systems
SKU:CON-c44cc8
Secure and align duct banks effortlessly with the 5x3 Intermediate Spacer for underground installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
5x3 Intermediate Spacer - Underground Duct Spacer for Conduit Systems
$29.99
Quantity: 1
Claim Your Seller Account
5x3 Intermediate Spacer - Underground Duct Spacer for Conduit Systems
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5x3 Intermediate Spacer is an essential component for securing duct banks in underground installations, designed for easy assembly and solid support. Featuring a completely locked-in construction, this spacer eliminates the need for banding and ensures fast and secure field assembly. With a focus on simplicity and efficiency, only two components, base, and intermediate spacers are required. The interlocking system prevents separation, offering uncomplicated alignment of duct bank sections. Recommended for use in both EB and DB installations, this spacer promotes accurate duct separation, meeting the demands of complex field conditions with ease.
Product Specifications
Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
5 in
Specifications Pipe Separation
3 in
Specifications Short Description
GSI5X300191 SPACER INTERM 5X3
Specifications Standard Pack
80
Specifications Type
Single Intermediate Spacer
Specifications Weight
22 lb
