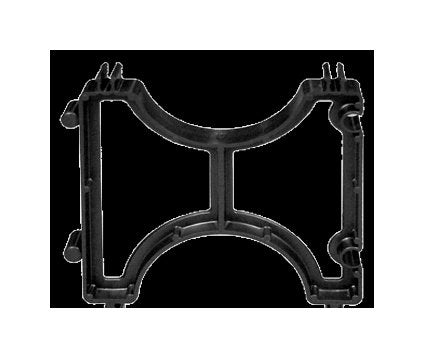

5x3 PVC Intermediate Duct Spacer
5x3 PVC Intermediate Duct Spacer
SKU:PVC-c44cc8
Efficiently align, secure, and prevent separation in duct banks with the 5x3 PVC Intermediate Duct Spacer.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
5x3 PVC Intermediate Duct Spacer
$29.99
Quantity: 1
Claim Your Seller Account
5x3 PVC Intermediate Duct Spacer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5x3 PVC Intermediate Duct Spacer is a crucial component for underground duct bank installations. Designed to securely interlock ducts, this spacer eliminates the need for additional support elements. Its fully locked-in construction ensures easy alignment, fast field assembly, and reliable separation prevention. With only two components required – base and intermediate spacers – installation is efficient. The spacer's versatility allows for vertical snapping and horizontal sliding, catering to various field conditions. Ensure stability and compliance in duct bank projects with this durable and user-friendly spacer.
Product Specifications
Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
5 in
Specifications Pipe Separation
3 in
Specifications Short Description
GSI5X300191 SPACER INTERM 5X3
Specifications Standard Pack
80
Specifications Type
Single Intermediate Spacer
Specifications Weight
22 lb
