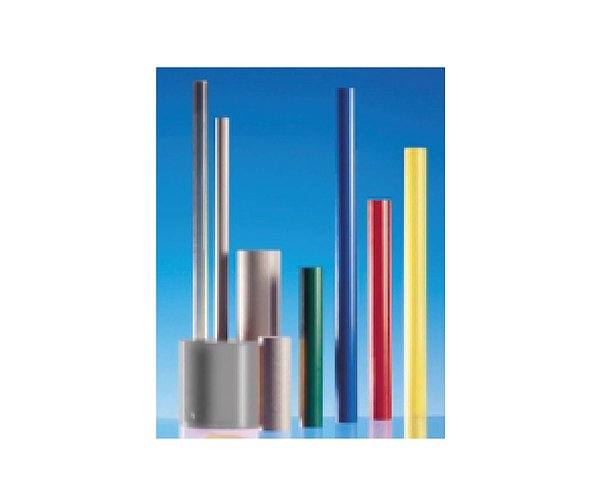

6.000 Inch (in) Diameter Cast Nylon Rod
6.000 Inch (in) Diameter Cast Nylon Rod
SKU:NYL-571d3a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
6.000 Inch (in) Diameter Cast Nylon Rod
$49.99
Quantity: 1
Claim Your Seller Account
6.000 Inch (in) Diameter Cast Nylon Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Nylon: The "workhorse" of mechanical plastics…Nylon is one of the most common and most used due to the variety of shapes, sizes and fillers available.Nylon: The "workhorse" of mechanical plastics
Product Specifications
Additional Information
Nylon comes in 2 basic forms; Extruded and Cast. The properties are similar for both methods for manufacturing. The main differences are the sizes available, and specific grades and fillers available in each.Extruded Nylon is most often a 6/6 nylon. It is available in very thin sheets and small diameters, as well as larger sizes. It is a natural color and is also available in black. Some common variations are:Molybdenum Disulphide filled (nylon MD) increases the surface hardness of nylon, thus increasing it's sliding ability. Greater wear resistance and lubricity are achieved. MD is noted by it's gray- black color which is often seen as swirls.Glass filled Nylon enhances stiffness, strength, and dimensional stability. Glass content can range from 10% to 30%. The addition of glass makes it abrasive and not well-suited for sliding applications.Low-Moisture-Nylon 612 is the most common. Absorbs less moisture than 6/6, thus offering better dimensional stability in a wet or humid application.ST801 - Super tough nylon has better impact strength over standard nylon.Cast Nylon - is a type 6 nylon. It is available in very thick sheets, large diameter rod, and tubular bar. It is a natural color and is available in blue.Oil-Impregnated - This has a much lower coefficient of friction than regular cast nylon. This makes it ideal for bearings, bushings, and rollers. The oil becomes an integral part of the nylon during the manufacturing process, and will never drain, spill, or dry out. The increased lubricity also enhances machinability.
Properties
Some of its key properties are:Very good wear and abrasion resistanceExcellent Impact resistanceFDA/USDA/NSF compliantOutstanding chemical resistanceContinuous use temperature of 210 degrees F
Specifications Color
Blue | MD | Natural | Oil
Specifications Diameter
6.000 in
Specifications Note For Standard Length
Lengths 9" and over 1 ft. lengths.
Specifications Note For Tolerance
Tolerances: Oversized to allow for machining to size
Specifications Standard Length
2 ft
Specifications Weight
14.10 lb/ft
