6.125x2.625 in Standard Chip Deflector

Name: 6.125x2.625 in Standard Chip Deflector
Brand: Bermar Associates, Inc.
SKU: STA-176680
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-176680

Protect machine ways with precision using our 6.125x2.625 in Standard Chip Deflector made of 16 gauge cold-rolled steel. Customizable options available.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

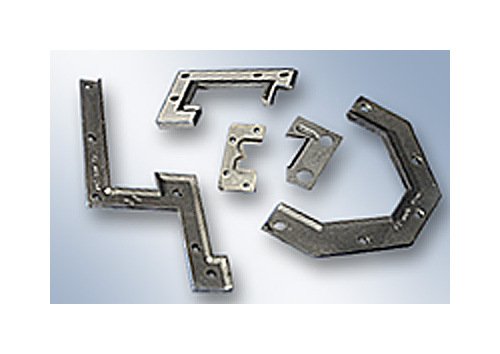

The 6.125x2.625 Inch Standard Chip Deflector from Bermar Associates, Inc. is meticulously crafted from 16 gauge cold-rolled steel to safeguard machine ways and way wipers from metal chip damage. Perfect for hot chip applications, these deflectors also serve as stiffeners, ensuring added strength. Customizable to meet your size specifications, with or without hole patterns, these deflectors are crucial for industrial operations requiring precision and protection.

Product Specifications

Mounting Instructions Mounting Instructions

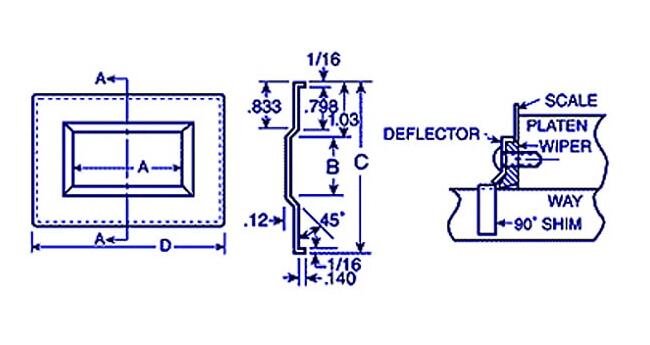

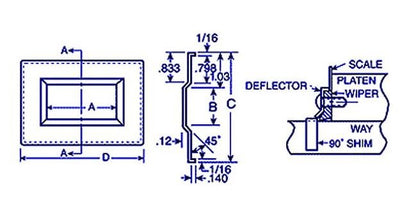

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

6.125 in

Specifications Dimension B

2.625 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
