6" 316 Stainless Steel Thermowell with NPT Stepped Shank
6" 316 Stainless Steel Thermowell with NPT Stepped Shank
SKU:NOS-f60f7e
Premium quality 6" 316 Stainless Steel Thermowell with NPT Stepped Shank for high-pressure, corrosive environments.
Regular price
$87.40
Regular price
Sale price
$87.40
Unit price
per
Initiate Order
6" 316 Stainless Steel Thermowell with NPT Stepped Shank
$87.40
Quantity: 1
Claim Your Seller Account
6" 316 Stainless Steel Thermowell with NPT Stepped Shank
$87.40
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

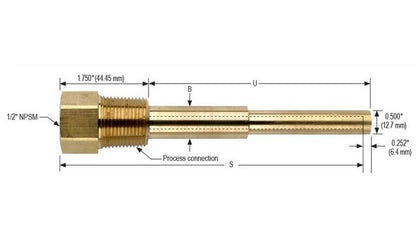

The 6" 316 Stainless Steel Thermowell features a 3/4" NPT process connection and a 1/2" NPSM instrument connection, ensuring easy removal and replacement without process shutdown. With a 6" stem length and high-pressure ratings up to 7,000 psi, this thermowell offers exceptional protection for temperature instruments in pressurized, corrosive, and high-velocity environments. Its stepped shank design and durable stainless steel construction guarantee reliability and longevity, making it ideal for HVAC, petrochemical, oil and gas, and process applications.
Product Specifications
Additional Information Additional Information
The Female thread will accept the 1/2" NPT Male thread without galling or seizingBrass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options availableStandard style is stepped, available in straight, tapered and lagging optionsMultiple lagging lengths available
Application Application
Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocityHVACPetrochemicalOil and gasProcess (flanged thermowells)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications Bore Size
0.260 in | 6.35 mm
Specifications Insertion Diameter B Max
3/4 in | 19.05 mm
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Connection Type
National Pipe Straight Mechanical (NPSM)
Specifications List Price
87.40 USD
Specifications Material
316 Stainless Steel
Specifications Pressure Ratings At 70 Degree Fahrenheit F
7,000 psi
Specifications Process Connection Size
3/4 in
Specifications Process Connection Type
National Pipe Thread (NPT)
Specifications Shank Diameter Max
0.750 in | 19.05 mm
Specifications Stem Length
6 in
Specifications Stock
Yes
Specifications Style
Stepped Shank
Specifications Type
Thermowell
Specifications Warranty
1 y
