6-32 Threaded Nylon Support Post for Circuit Board Mounting

Name: 6-32 Threaded Nylon Support Post for Circuit Board Mounting
Brand: All Electronics Hardware
SKU: 01C-3575ef
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-3575ef

Durable 6-32 Threaded Nylon Support Post for Circuit Board Mounting. RoHS compliant, ASTM D 4066, PA111 standards met.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

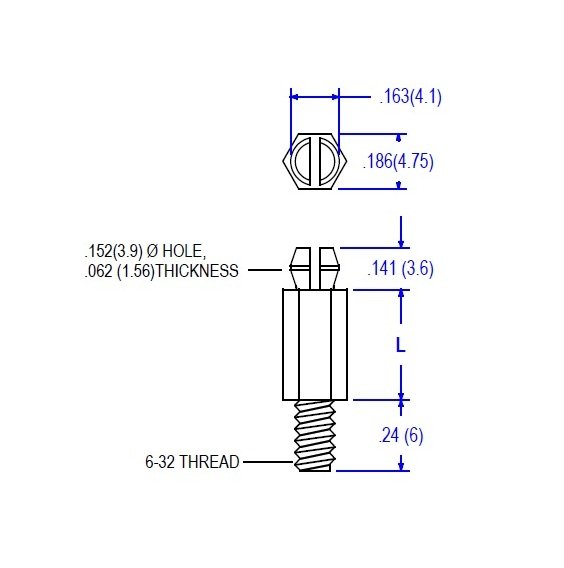

The 23 Series .156 Board Hole x 6-32 Thd. Chassis Side support post is a reliable solution for secure circuit board mounting. Made of UL94V-2 Nylon 66 material, this male threaded post offers durability and heat resistance. With a .156 inch mounting hole diameter and .062 inch board thickness compatibility, it ensures a snug fit. This product is RoHS compliant and meets ASTM D 4066, PA111 standards, making it a safe and reliable choice for various applications.

Product Specifications

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.875 (22.3) inches (mm)

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

.156 (4.0) inches (mm)
