6-32 Threaded Nylon Support Post for Circuit Boards

Name: 6-32 Threaded Nylon Support Post for Circuit Boards
Brand: All Electronics Hardware
SKU: 01C-d39759
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-d39759

Securely mount circuit boards with the durable 6-32 Threaded Nylon Support Post. RoHS compliant and temperature-resistant from -40 to 185F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

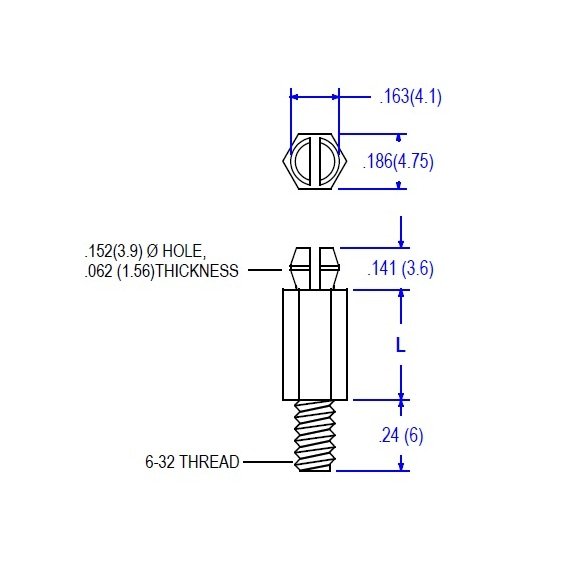

The 23 Series .156 Board Hole x 6-32 Thd. Chassis Side support post is designed for secure mounting of circuit boards. Made from Nylon 66 UL94V-2 material, this post offers durability and reliability in various applications. With a mounting hole diameter of .156 inches and board thickness compatibility of .062 inches, this support post ensures a precise fit. It is RoHS compliant and meets ASTM D 4066 and PA111 standards. The post's male 6-32 thread pairs seamlessly with AEH Hex Nuts for convenient installation. Temperature resistant from -40 to 185F, it guarantees performance in diverse environments.

Product Specifications

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

.156 (4.0) inches (mm)
