6-32 Threaded Support Post with .156 Board Hole, Nylon Material

Name: 6-32 Threaded Support Post with .156 Board Hole, Nylon Material
Brand: All Electronics Hardware
SKU: 01C-925b83
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-925b83

Durable 6-32 Threaded Support Post for circuit boards. Nylon material, ASTM & RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

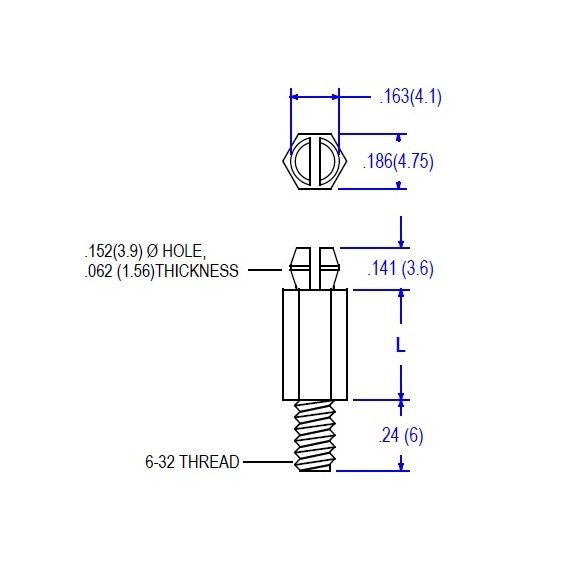

The 23 Series threaded support post is designed for secure mounting on circuit boards with a .156-inch hole diameter. Made of durable Nylon 66 UL94V-2 material, this post offers reliable strength and stability. It features a male 6-32 thread that seamlessly mates with AEH Hex Nuts for a secure fit. With ASTM and RoHS compliance, this post ensures safety and quality. Suitable for a temperature range of -40 to 185F (-40 to 85C), it provides versatility and reliability for various applications.

Product Specifications

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.625 (15.9) inches (mm)

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

.156 (4.0) inches (mm)
