6.5kVDC Female Stub Cable Assembly - Series 31 Coaxial Connector

Name: 6.5kVDC Female Stub Cable Assembly - Series 31 Coaxial Connector
Brand: Teledyne Reynolds
SKU: HIG-323260
Price: 49.99 USD
Availability: OutOfStock

SKU:HIG-323260

6.5kVDC Female Stub Cable Assembly for high voltage applications. Bayonet coupling, brass with gold plating, mates with Series 311 Cond. 1 connectors.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

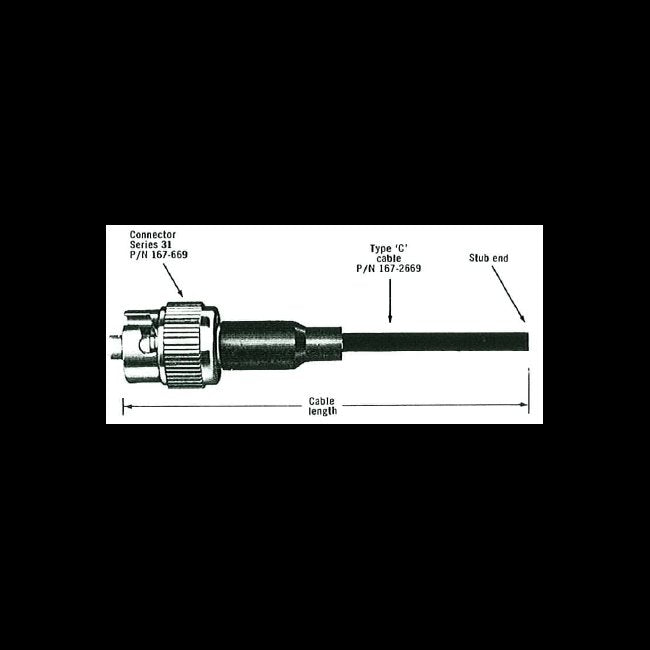

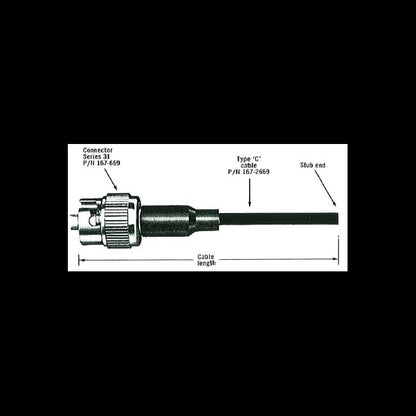

The 6.5kVDC Female Stub Cable Assembly featuring Series 31 Coaxial Connector is a high-quality single-ended plug cable assembly designed for high voltage applications. With a current rating of 10 Amp and a wide operating temperature range from -40 to 85 ºC, this assembly ensures reliable performance in various conditions. The bayonet coupling style and durable brass coupling nut material with gold plating make it easy to use and long-lasting. Mates seamlessly with all Series 311 Cond. 1 receptacles and adaptors for versatile connectivity.

Product Specifications

Body Properties Coupling Nut Finish

Gold Plated

Body Properties Coupling Nut Material

Brass

Contact Properties Contact Type

Female

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Single-Ended Plug Cable Assembly

Specifications Coupling Style

Bayonet

Specifications Current Rating

10 Amp

Specifications End 1

1670669

Specifications Export Classification

TBD

Specifications Mating Compatibility

Mates all Series 311 Cond. 1 receptacles and adaptors.

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Polarization

Cond. 1

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

Specifications Standardnon Standard

Standard Part

Specifications Test Voltage

TBD

Specifications Voltage Rating

6.5 kVDC
