6.5kVDC Male Pigtail Cable Assembly - Series 31 Coaxial Connector

Name: 6.5kVDC Male Pigtail Cable Assembly - Series 31 Coaxial Connector
Brand: Teledyne Reynolds
SKU: HIG-2c18d4
Price: 79.99 USD
Availability: OutOfStock

SKU:HIG-2c18d4

Reliable 6.5kVDC Male Pigtail Cable Assembly for high-voltage applications, featuring Series 31 Coaxial Connector.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

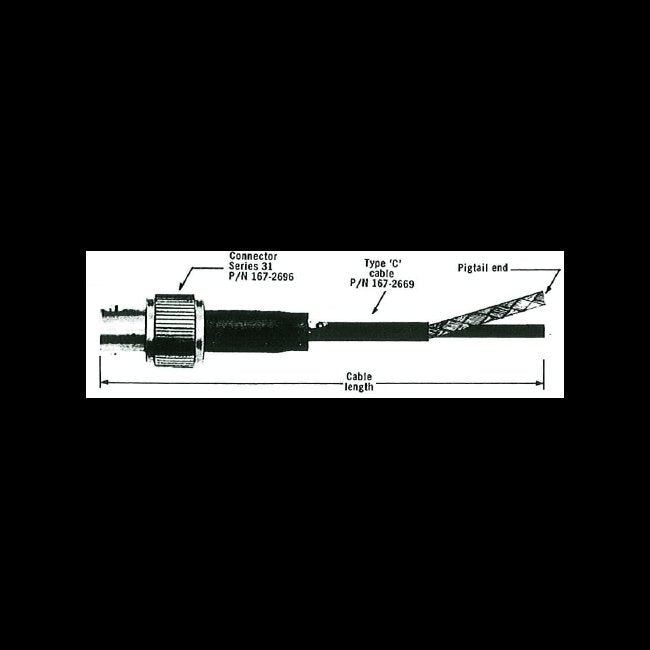

The 6.5kVDC Male Pigtail Cable Assembly features a Single-Ended Receptacle design, meeting Sea Level altitude standards. With a current rating of 10 Amp, operating temperature range of -40 to 85 ºC, and brass coupling nut material with gold plated finish, this assembly ensures reliable high-voltage connectivity. It mates all Series 311 Cond. 1 receptacles and adaptors, boasting a bayonet coupling style for secure connections.

Product Specifications

Body Properties Coupling Nut Finish

Gold Plated

Body Properties Coupling Nut Material

Brass

Contact Properties Contact Type

Male

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Single-Ended Receptacle Cable Assembly

Specifications Coupling Style

Bayonet

Specifications Current Rating

10 Amp

Specifications End 1

1672696

Specifications Export Classification

TBD

Specifications Mating Compatibility

Mates all Series 311 Cond. 1 receptacles and adaptors.

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Polarization

Cond. 1

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

Specifications Series

Specifications Standardnon Standard

Standard Part

Specifications Test Voltage

TBD

Specifications Voltage Rating

6.5 kVDC
