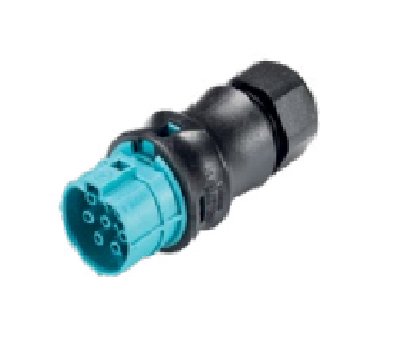

6/7 Poles Turquoise Blue Female Connector - 20A
6/7 Poles Turquoise Blue Female Connector - 20A
SKU:CIR-dfeb75
High-quality 6/7 Poles Turquoise Blue Female Connector - 20A, ideal for outdoor use. Secure, reliable, with color-coded contact carrier.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6/7 Poles Turquoise Blue Female Connector - 20A
$29.99
Quantity: 1
Claim Your Seller Account
6/7 Poles Turquoise Blue Female Connector - 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6/7 Poles Turquoise Blue Female Connector is a premium pluggable electrical connector designed for outdoor use. Manufactured by Wieland, this connector features a straight angle plug with a screw connection, ensuring secure and reliable electrical connections. With a color-coded contact carrier in elegant Turquoise Blue, this connector offers easy identification and installation. It has a wide range of technical capabilities, including a minimum cable diameter of 10mm, a maximum cable diameter of 14mm, and a rated voltage ranging from 250V to 600V. Meeting IP69 and Type 4X/6P protection standards, this connector is suitable for demanding outdoor applications.
Product Specifications
Note Note
Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
6
Specifications Type
Female
Technical Data Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)
Technical Data Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X/6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.2 to 1.5 mm²
