6-Conductor Audio Plug MIL-C-55116
6-Conductor Audio Plug MIL-C-55116
SKU:M55-578484
Rugged 6-Conductor Audio Plug MIL-C-55116: Stainless steel construction, bayonet coupling, 3000 mating cycles, watertight up to 6 ft, -55 to 85 °C operability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6-Conductor Audio Plug MIL-C-55116
$29.99
Quantity: 1
Claim Your Seller Account
6-Conductor Audio Plug MIL-C-55116
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6-Conductor Audio Plug MIL-C-55116 is designed for ruggedized commercial and military applications, featuring a bayonet coupling for secure connections. Constructed with stainless steel shell material and gold-plated brass contacts, this plug ensures reliability in harsh environments. With proven durability through 3000 mating cycles, watertight up to 6 feet for 48 hours, and an operating temperature range of -55 to 85 °C, it meets stringent MIL-C-55116 specifications for superior performance.
Product Specifications
Specifications Alternate Pn
U-229 B/U
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

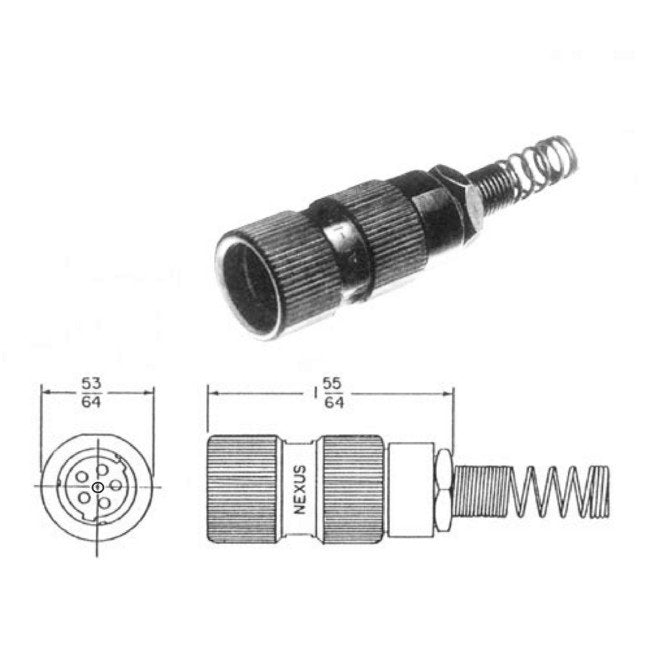

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
