6-Conductor Shielded Audio Plug, MIL-C-55116 Compliant
6-Conductor Shielded Audio Plug, MIL-C-55116 Compliant
SKU:M55-80a630
Enhance audio connections with our MIL-C-55116 compliant shielded plug, designed for durability and reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6-Conductor Shielded Audio Plug, MIL-C-55116 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
6-Conductor Shielded Audio Plug, MIL-C-55116 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your audio connections with the 6-Conductor Shielded Audio Plug meeting MIL-C-55116 standard. Built for ruggedized commercial and military applications, this plug features a stainless steel shell, gold-plated brass contacts, and Bayonet coupling for secure connections. With a temperature range of -55 to 85°C and water immersion resistance up to 6 feet for 48 hours, this plug ensures reliable performance in challenging environments. Trust in its 3000 mating cycles and compatibility with wire strain relief for lasting connectivity.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Shielded Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

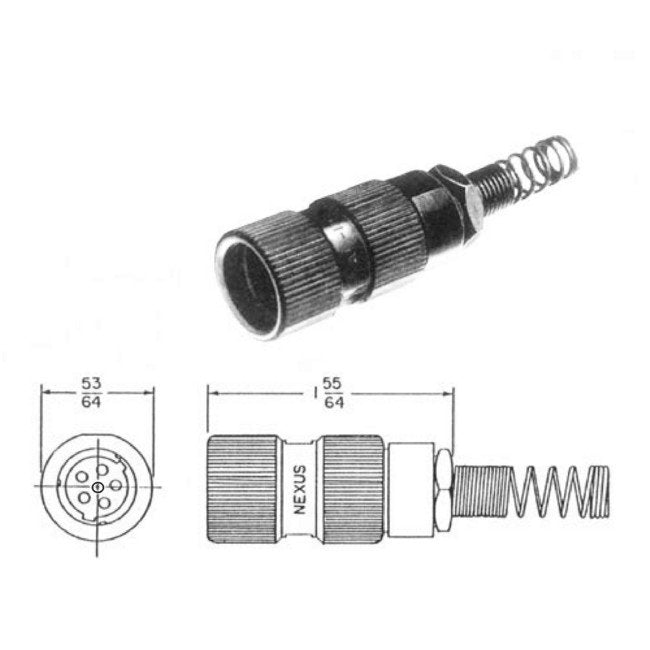

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.953 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
