The 6-Contact Shielded Audio Plugs MIL-C-55116 are designed for ruggedized commercial and military applications, meeting stringent MIL-C-55116 standards. These shielded plugs feature a stainless steel shell, gold-plated brass contacts, and silver-plated BeCu springs for optimal conductivity and durability. With bayonet coupling and wire strain relief, they ensure secure connections and reliable performance in extreme conditions. Rated for 3000 mating cycles, these plugs offer superior reliability in temperatures ranging from -55 to 85°C. They provide exceptional contact resistance, insulation resistance, and dielectric strength, making them ideal for critical audio connectivity in demanding environments.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Shielded Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

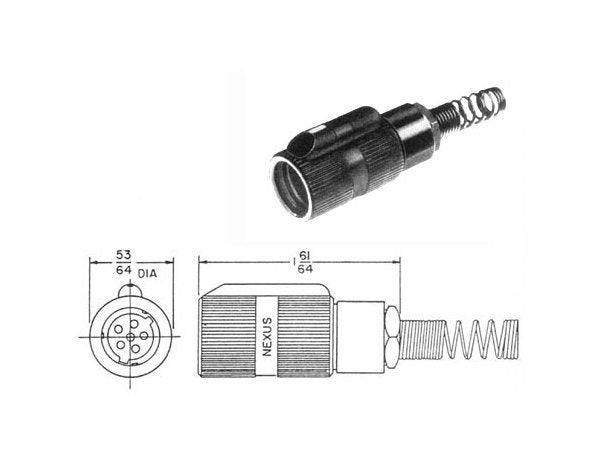

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.953 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
