The Gripper 143-9 Series 6 Inch ABS Wing Nut Inside-of-Pipe Plug - ideal for DWV and stack testing applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6 Inch ABS Wing Nut Inside-of-Pipe Plug - Gripper Series 143-9
$29.99
Quantity: 1
Claim Your Seller Account
6 Inch ABS Wing Nut Inside-of-Pipe Plug - Gripper Series 143-9
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6 Inch ABS Wing Nut Inside-of-Pipe Plug, part of the Gripper Series 143-9, is a reinforced ABS plastic plug designed for DWV and stack testing applications. This mechanical plug features an end-of-pipe design to prevent falling in and an inside-of-pipe design for flexible sealing placements. With a maximum back pressure of 17 psi, equipped with an extra-large zinc wing nut, galvanized carriage bolt for corrosion prevention, and a natural rubber o-ring, this plug ensures secure sealing in sewer testing and long-term applications. Always block plugs during air tests for safety.

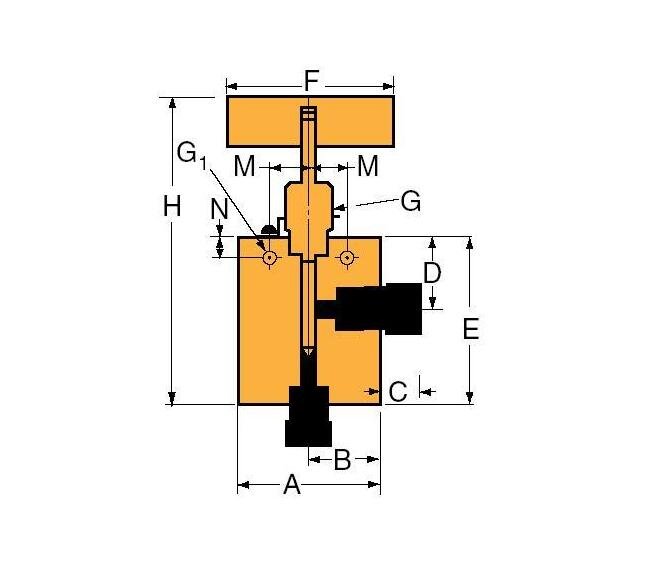

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.23
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
