6 Inch Fiberglass Gasket End Cap for Conduit Protection

Name: 6 Inch Fiberglass Gasket End Cap for Conduit Protection
Brand: Colonial Teltek
SKU: PVC-c1c56a
Price: 49.99 USD
Availability: OutOfStock

SKU:PVC-c1c56a

Protect conduit systems with our 6" Fiberglass End Cap featuring a triple seal gasket joint. Durable, watertight, and easy to install.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 6 Inch Nominal Size Iron Pipe Size Heavy Wall Fiberglass End Cap with Gasket Joint is designed by Champion Fiberglass® Inc. to provide increased protection for conduit systems ranging from 4" to 8". This end cap features a triple seal gasket joint system with a pull-out strength of up to 2,000 lbs when properly installed, ensuring a watertight seal. Constructed from durable fiberglass material in a black color, this end cap is specifically engineered for aboveground use, offering reliable performance and longevity for industrial applications.

Product Specifications

Application

Used for increased protection in 4" - 8"

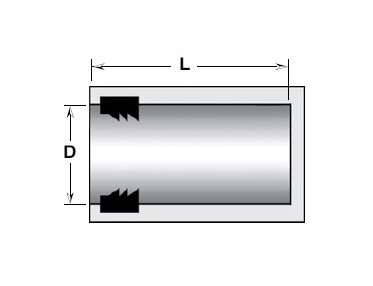

Dimesional Attributes D

6.69 in | 170 mm

Dimesional Attributes L

4 in | 102 mm

Dimesional Attributes Size

6 in

Gasket Joint Triple Seal

The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Material

Fiberglass

Specifications Type

Iron Pipe Size (IPS) Aboveground Fiberglass End Cap with Gasket Joint

Specifications Wall Thickness

Heavy Wall

Specifications Weight

1.09 kg | 2.40 lb
