6 Inch Hand Tightening Aluminum Test Plug - Series 149-2
6 Inch Hand Tightening Aluminum Test Plug - Series 149-2
SKU:HIG-45fde7
Efficient 6 Inch Aluminum Test Plug for reliable pipe testing with easy hand-tightening mechanism and durable construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
6 Inch Hand Tightening Aluminum Test Plug - Series 149-2
$89.99
Quantity: 1
Claim Your Seller Account
6 Inch Hand Tightening Aluminum Test Plug - Series 149-2
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior testing efficiency with the 6-inch Nominal Pipe Diameter Hand Tightening Test Plug from Petersen®. This innovative plug, part of the 149-1 and 2 Series, combines the functionality of three plugs in one. Featuring a durable aluminum body, easy hand-tightening mechanism, and maximum pipe pressure of 10 psig, this plug ensures reliable performance. The pure rubber ball with parallel ridges guarantees a perfect seal, while the coated steel handles and non-rust aluminum castings enhance durability. Replaceable parts and prevention of blowouts and water damage make this plug a smart choice for various installations.

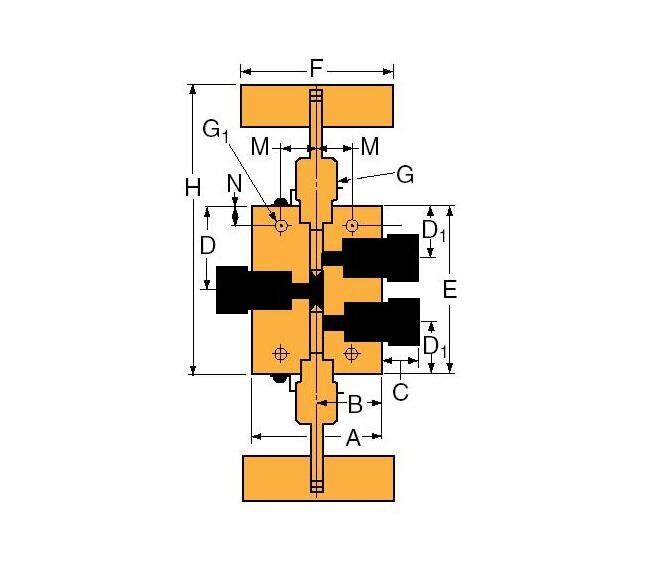

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C40
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
4.12 in | 104.65 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.59 in | 167.39 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.109 in | 2.77 mm
Specifications Outside Diameter Tube
9/16 in | 14.3 mm
Specifications Pressure Rating At Room Temperature
40000 psi | 2760 bar
Specifications Rated Cv
0.28
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R40VM9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
