6-inch Inlet Light Duty Line Vac Conveyor
6-inch Inlet Light Duty Line Vac Conveyor
SKU:LIG-a30fbd
Convey materials efficiently with the 6-inch Inlet Light Duty Line Vac Conveyor. Lightweight, durable, and quiet operation.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
6-inch Inlet Light Duty Line Vac Conveyor
$399.99
Quantity: 1
Claim Your Seller Account
6-inch Inlet Light Duty Line Vac Conveyor
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

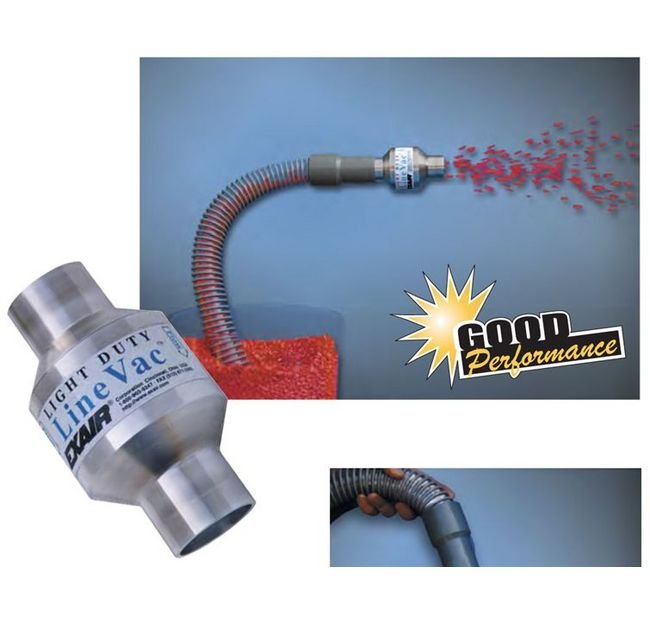

The 6-inch Inlet Light Duty Line Vac Conveyor from EXAIR offers a reliable solution for conveying small volumes of materials over short distances. Constructed with aluminum, this conveyor is lightweight and durable, suitable for applications like chip removal, fiber tensioning, and waste/trim removal. With an air consumption of 80.20 SCFM and a pressure of 80 psig, this conveyor provides moderate throughput capability without any moving parts, ensuring quiet operation and minimal maintenance. It's designed to fit standard hoses or tubes, making it versatile for various material conveying and transfer tasks.
Product Specifications
Specifications Advantages

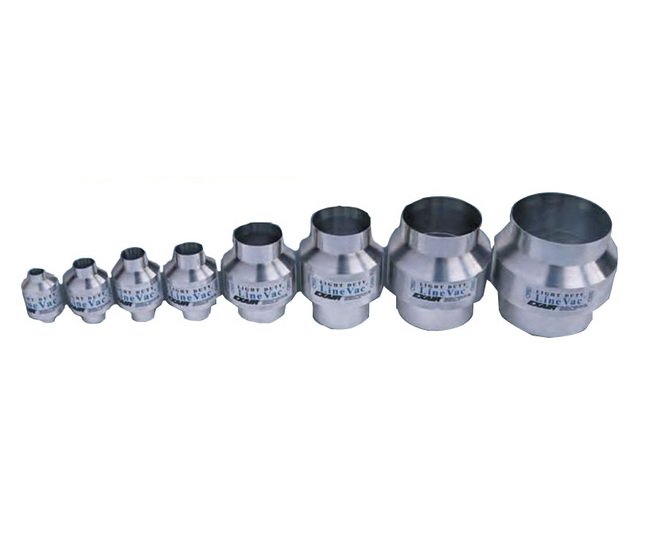

Aluminum | Compact | Eight Sizes | Fits Standard Hose or Tube | Moderate Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
80.20 SCFM | 2270 SLPM
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.88 in | 73 mm
Specifications Dimension F
1.06 in | 27 mm
Specifications Dimension G
1/2 NPT
Specifications Inlet Size
6 in | 152 mm
Specifications Inside Diameter
5.75 in | 146 mm
Specifications Outlet Diameter
6 in | 152 mm
Specifications Outside Diameter
7.38 in | 187 mm
Specifications Overall Length
5.56 in | 141 mm
Specifications Pressure
80 psig | 5.5 bar
