6 Inch Ionizing Bar for Static Elimination - Industrial Grade
6 Inch Ionizing Bar for Static Elimination - Industrial Grade
SKU:STA-c1f75c
Eliminate static efficiently with EXAIR's 6 Inch Ionizing Bar. Compact, durable, and compliant with UL and RoHs standards for safety.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
6 Inch Ionizing Bar for Static Elimination - Industrial Grade
$299.99
Quantity: 1
Claim Your Seller Account
6 Inch Ionizing Bar for Static Elimination - Industrial Grade
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

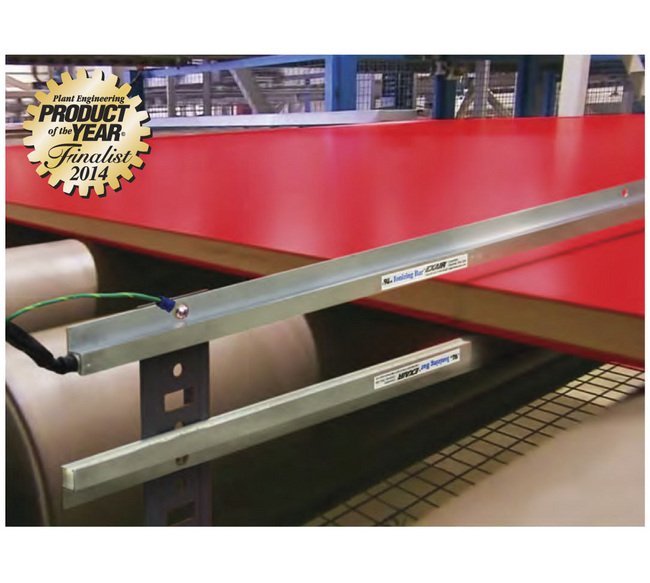

The 6 Inch Ionizing Bar from EXAIR effectively eliminates static electricity on paper, film, and plastics, preventing dust accumulation, product damage, and hazards to personnel. This electrically powered bar features a rugged aluminum construction, stainless steel emitters, and UL-rated plastic parts for durability and safety. With a rapid static decay and a range of up to 2 inches, this compact and low-maintenance device is ideal for industrial environments where static charges pose risks. It meets UL safety standards, RoHs compliance, and is suitable for diverse applications such as bag making, labeling, and packaging.
Product Specifications
Specifications Advantages
Compact | Easy to Install, Equipped with Mounting Flange | Effective up to 2 inch (51 mm) | Fully Assembled | Low Cost | Low Maintenance | Rapid Static Decay | Rugged Design for Industrial Environments | Shockless, Non-Radioactive
Specifications Applications
Bag Making - Form and Fill | Converting Machinery | Hard to Reach Places or Obstructed Surfaces | Labeling | Neutralizing Shrink Wrap | Neutralizing Slitting Operations | Packaging | Product Moving at High Speeds | Screen Printing | Sheet Fed and Web Presses | Surfaces with an Extremely High Charge | Textiles
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
5' (1.52 m) Length of Shielded Cable | Assembled Connector
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
6 in | 152 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
2 in | 51 mm
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
