6 Inch IPS Belowground Straight Fiberglass Conduit with Interference Joint
6 Inch IPS Belowground Straight Fiberglass Conduit with Interference Joint
SKU:BRI-2f6f58
Durable 6" IPS Fiberglass Conduit for Belowground Use, Easy Installation with High Pull-out Strength, Meets UL Standards
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
6 Inch IPS Belowground Straight Fiberglass Conduit with Interference Joint
$39.99
Quantity: 1
Claim Your Seller Account
6 Inch IPS Belowground Straight Fiberglass Conduit with Interference Joint
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6 Inch IPS Belowground Straight Fiberglass Conduit with Interference Joint by Champion Fiberglass® is engineered for durability and efficient installation. Featuring an integral bell and spigot with tapered buttress threads, this conduit ensures easy assembly with a high pull-out strength of 1,000 lbs. Concrete tight with exceptional dimensional attributes, it meets UL standards and offers a nominal size of 6 inches and a length of 20 feet. Champion Fiberglass®'s epoxy-based resin system with continuous E-glass roving construction delivers superior performance below ground, complying with industry standards for quality and safety.
Product Specifications

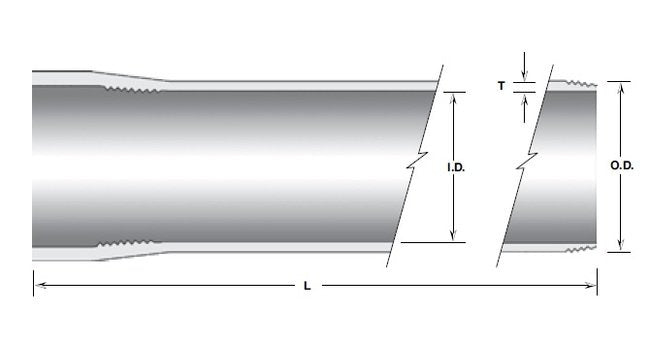

Dimesional Attributes Average Outside Diameter
6.575 in | 167 mm
Dimesional Attributes Inside Diameter Min
6.435 in | 163 mm
Dimesional Attributes Length L
20 ft | 6.1 m
Dimesional Attributes Nominal Size
6 in | 152 mm
Dimesional Attributes Nominal Wall Thickness
0.070 in | 2 mm
Dimesional Attributes Outside Diameter Tolerance
-0.018 in | 0.028 in | -0.4 mm | 0.7 mm
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Belowground Straight Conduit with Interference Joint
Specifications Wall Thickness
Standard Wall
Specifications Weight
1.00 lb/ft | 1.49 kg/m
