6-Inch Muni-Ball® 130-2 Series Municipal Style By-Pass Plug

Name: 6-Inch Muni-Ball® 130-2 Series Municipal Style By-Pass Plug
Brand: Hayward Flow Control
SKU: BUL-935b64
Price: 89.99 USD
Availability: OutOfStock

SKU:BUL-935b64

Versatile 6-inch Municipal By-Pass Plug for easy piping system testing and monitoring. Durable design with flexible bypass and threaded ends.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 6-Inch Muni-Ball® 130-2 Series Municipal Style By-Pass Plug features a full bypass for easy testing and monitoring of piping systems. With a 1/4" Shrader Tire inflation valve and removable threaded valve, it offers versatility for quick disconnect fittings. Designed for nominal sizes of 6 inches, this plug has a durable construction to withstand back pressures up to 13 psi, making it ideal for municipal infrastructure maintenance. Its flexibility allows bending to 90°, threaded on both ends, and suitable for applications ranging from 4.50 to 6.25 inches in diameter.

Product Specifications

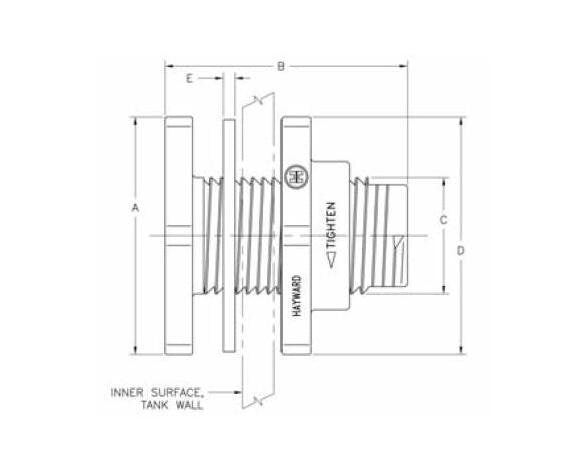

Specifications A Across Flats

3.00 in

Specifications B

3.75 in

Specifications Body Material

PVC

Specifications C Installation Hole Size

1.38 in

Specifications D Across Flats

3.00 in

Specifications End Connection

Threaded x Threaded

Specifications E Gasket Thickness

0.19 in

Specifications Seals

EPDM

Specifications Size

1/2"

6-Inch Muni-Ball® 130-2 Series Municipal Style By-Pass Plug
