6-inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Polyester Element
6-inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Polyester Element
SKU:SPI-9d4012
Enhance air quality with the 6-inch Spinmeister Air Filter - ideal for high dust areas
Regular price
$439.99
Regular price
Sale price
$439.99
Unit price
per
Initiate Order
6-inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Polyester Element
$439.99
Quantity: 1
Claim Your Seller Account
6-inch Outlet Spinmeister Extreme Duty Inlet Air Filter - Polyester Element
$439.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

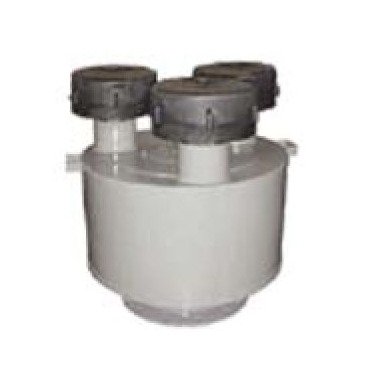

The 6-inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Polyester Element sets a new standard for extreme duty filtration in high dust environments. With 85% efficiency at 15 microns or larger, this filter significantly extends the lifespan of the filter element. Its centrifugal flow design forces particulate through side louvers before being filtered by a 99%+ efficient pleated element. Durable construction, heavy gauge carbon steel base, low pressure drop bracket, and a wide range of applications from blowers to paper industries make this filter a versatile and reliable choice for demanding air filtration needs.
Product Specifications
Dimensions Dimension A
30-1/2 in
Dimensions Dimension B
5 in
Dimensions Dimension C
22-1/2 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
100 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
6 in
Specifications Rated Flow
1100 scfm
Specifications Type
D
