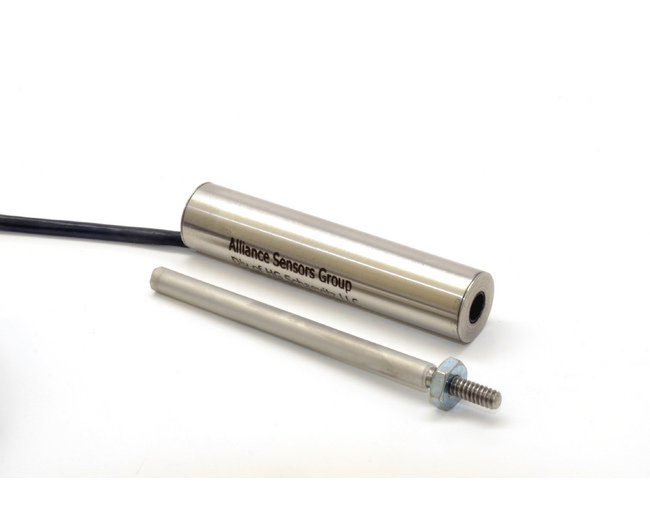

The 6-Inch Stroke DC Linear Variable Differential Transformer (LVDT) Sensor by Alliance Sensors Group is a high-precision replacement sensor designed for industrial applications. With an outside diameter of 1/2 inch and output ranging from 0 to 10 Volts DC, this sensor offers exceptional linearity of <0.25% of full scale, ensuring accurate and reliable measurement. Constructed with a stainless steel body and CE-approved, it operates within a wide temperature range of -40 to 105 ºC. Featuring a 1m axial cable termination and an update rate of 300 Hz, this sensor provides precise and consistent performance for critical systems.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
1/2 in
Technical Specs Range
6 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
6 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
