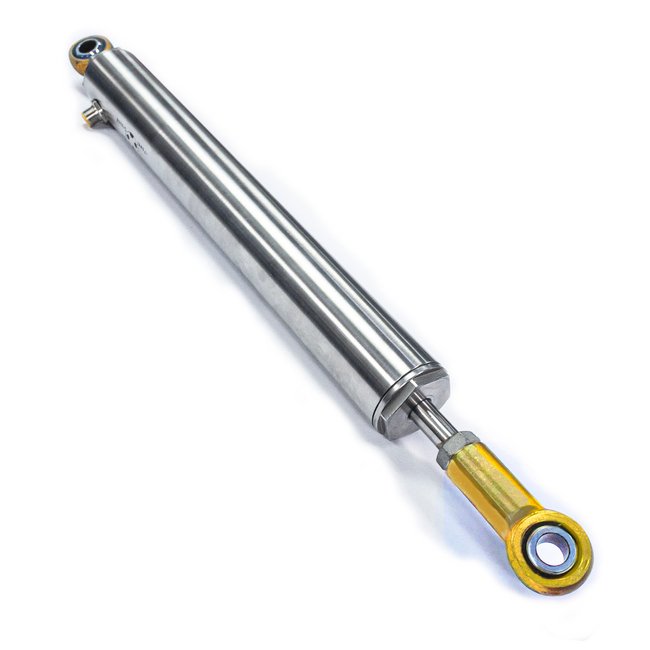

6 Inch Stroke Linear Potentiometer Replacement Sensor

Name: 6 Inch Stroke Linear Potentiometer Replacement Sensor
Brand: Alliance Sensors Group
SKU: LIN-0d8e61
Price: 79.99 USD
Availability: OutOfStock

SKU:LIN-0d8e61

Enhance equipment with a 6-inch stroke linear sensor for precise measurements and reliable performance.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your equipment with the 6-inch stroke linear potentiometer replacement sensor from Alliance Sensors Group. This sensor features a robust stainless steel body, 0 to 10V DC output voltage, -40 to 105 ºC temperature range, and radial M12 connector. With high linearity, low resolution, and fast update rate, this sensor ensures precise measurements. European Conformity (CE) approved, it meets stringent quality standards for reliability and performance.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Connector Type

Radial M12

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

45 mm

Technical Specs Range

6 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

6 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz

6 Inch Stroke Linear Potentiometer Replacement Sensor
