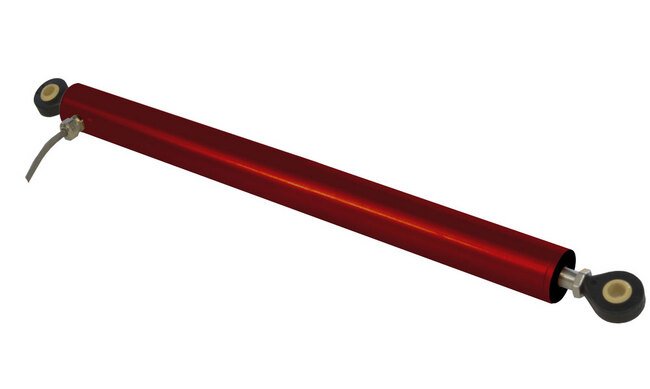

6-Inch Stroke Linear Potentiometer Replacement Sensor

Name: 6-Inch Stroke Linear Potentiometer Replacement Sensor
Brand: Alliance Sensors Group
SKU: LIN-2c6770
Price: 69.99 USD
Availability: OutOfStock

SKU:LIN-2c6770

Upgrade your system with the precise and durable 6-Inch Stroke Linear Potentiometer Replacement Sensor from Alliance Sensors Group.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your system with the Alliance Sensors Group 6-Inch Stroke Linear Potentiometer Replacement Sensor. This sensor features an aluminum body with a 27mm outside diameter, ensuring durability in various conditions. With a temperature range of -40 to 105 ºC and European Conformity (CE) approval, it meets stringent quality standards. Enjoy precise measurements with <0.25% linearity and 0.025% resolution, enhancing your operational efficiency. The 0-10V DC output and 300 Hz update rate provide accurate data output for smooth performance.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Type

Radial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Aluminum Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

27 mm

Technical Specs Range

6 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

6 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Termination

1 m Cable

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz

6-Inch Stroke Linear Potentiometer Replacement Sensor
