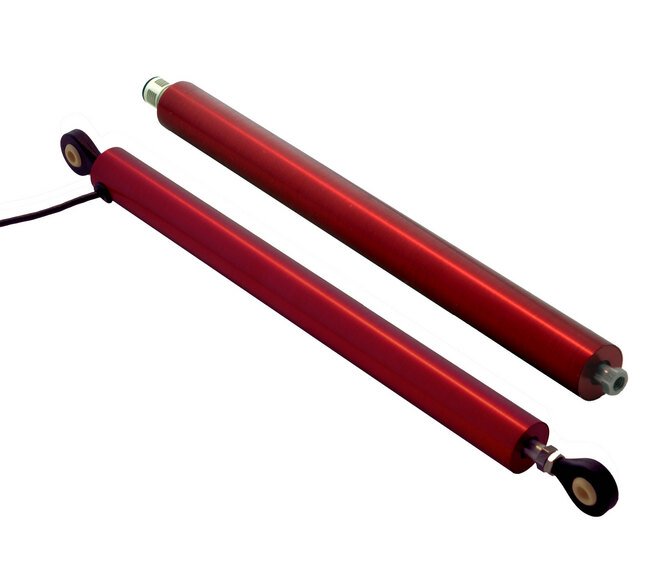

6-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output
6-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output
SKU:LIN-b33d64
Upgrade your systems with Alliance Sensors Group's 6-Inch Stroke Linear Potentiometer Sensor for precise measurements and CE approval.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
6-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output
$89.99
Quantity: 1
Claim Your Seller Account
6-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your equipment with the 3/4-inch Outside Diameter Linear Potentiometer Replacement Sensor by Alliance Sensors Group. Featuring a 6-inch stroke and 0-10V DC output, this sensor ensures precise measurements with <0.25% linearity. Built with an aluminum body, it operates in a wide temperature range (-40 to 105 ºC), offering superior durability and performance. The sensor is CE approved and comes with a 1m radial cable termination for easy installation. Enhance your systems with this reliable and accurate linear potentiometer sensor.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
6 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
6 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
