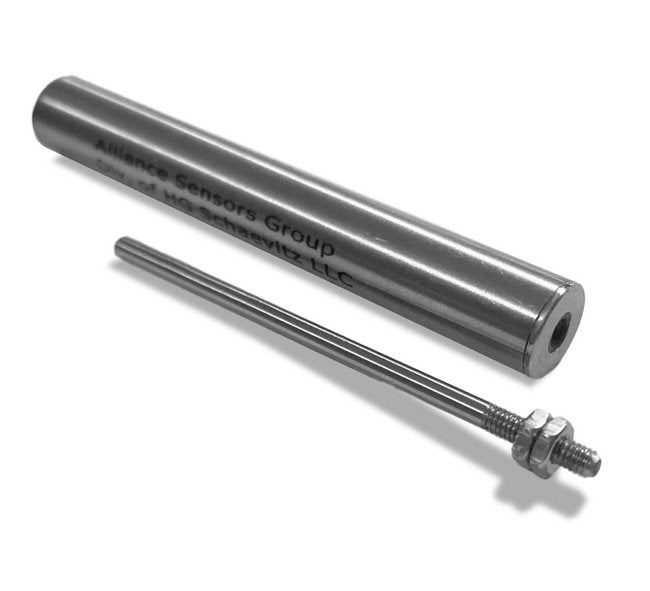

6-Inch Stroke LVDT Sensor, 0-10V DC Output, 3/8in OD, Stainless Steel Body
6-Inch Stroke LVDT Sensor, 0-10V DC Output, 3/8in OD, Stainless Steel Body
SKU:DCT-d60cef
Upgrade to precise 6in stroke LVDT sensor w/ 0-10V DC output, stainless steel body & CE approval for accurate measurements.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
6-Inch Stroke LVDT Sensor, 0-10V DC Output, 3/8in OD, Stainless Steel Body
$199.99
Quantity: 1
Claim Your Seller Account
6-Inch Stroke LVDT Sensor, 0-10V DC Output, 3/8in OD, Stainless Steel Body
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade measurement accuracy with the 6-inch stroke LVDT sensor. Designed by Alliance Sensors Group, this sensor offers precise linear displacement sensing with a 0-10V DC output. With a temperature range of -40 to 105°C, stainless steel construction, and CE approval, it ensures reliable performance in diverse environments. Benefit from <0.25% linearity, 0.025% resolution, and a 300 Hz update rate. The 1m axial cable termination simplifies installation, making it an ideal replacement sensor for linear potentiometers.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/8 in
Technical Specs Range
6 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
6 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
