6" Intermediate Trunnion Mount for NFPA Air Cylinders
6" Intermediate Trunnion Mount for NFPA Air Cylinders
SKU:AIR-3e01aa
Enhance force and motion control with our 6" Intermediate Trunnion Mount for NFPA Air Cylinders, ensuring efficiency and reliability.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
6" Intermediate Trunnion Mount for NFPA Air Cylinders
$79.99
Quantity: 1
Claim Your Seller Account
6" Intermediate Trunnion Mount for NFPA Air Cylinders
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier efficiency with our 6" Intermediate Trunnion Mount from the NFPA-compliant 4MA Series Air Cylinders. Crafted from lightweight aluminum, this mount offers a flexible construction, 20 mounting styles, and adjustable cushions for precise control. With bore sizes ranging from 1-1/2" to 5" and versatile stroke lengths, this mount ensures seamless linear force and motion actuation for your cylinder needs. Maintenance is hassle-free with a removable bronze alloy gland/bearing while its extruded-profile aluminum body guarantees durability. Opt for reliability and compliance with this RoHS-certified trunnion mount.
Ready to Grow Without Cash Flow Constraints?

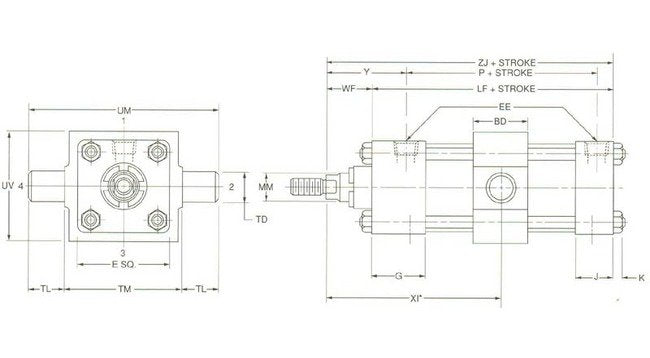

Product Specifications
Rod Dimensions A
1 5/8 in | 2 in
Rod Dimensions B
1.999 in | 2.374 in
Rod Dimensions C
13/16 in | 7/8 in
Rod Dimensions D
1 1/2 in | 1 1/8 in
Rod Dimensions La
3 1/4 in | 3 7/8 in
Rod Dimensions Na
1 11/16 in | 1 5/16 in
Rod Dimensions Rod Dimension Mm
1 3/4 in | 1 3/8 in
Rod Dimensions Thread Style 2 3 Kk
1 1/4-12 | 1-14
Rod Dimensions Thread Style 4 Cc
1 1/2 -12 | 1 1/4 -12
Rod Dimensions Tolerance B
+0.000 in | -0.002 in
Rod Dimensions Vf
1 1/16 in | 3/4 in
Rod Dimensions W
1 1/8 in | 7/8 in
Rod Dimensions Wf
1 5/8 in | 1 7/8 in
Rod Dimensions Y
2 13/16 in | 3 1/16 in
Specifications Add Stroke Lf
5 in
Specifications Add Stroke P
3 1/8 in
Specifications Add Stroke Xj
5 7/8 in | 6 1/8 in
Specifications Add Stroke Zj
6 5/8 in | 6 7/8 in
Specifications Bd
2 1/2 in
Specifications Bore Size
6 in
Specifications E
6 1/2 in
Specifications Ee Nptf
3/4 in
Specifications G
1.91 in
Specifications J
1.41 in
Specifications K
7/16 in
Specifications Manufacturer
Schrader Bellows®
Specifications Min Stroke
7/8 in
Specifications Min Xi
4 15/16 in | 5 3/16 in
Specifications Nfpa
MT4
Specifications Tl
1 3/8 in
Specifications Tm
7 5/8 in
Specifications Um
10 3/8 in
Specifications Ut
9 1/4 in
Specifications Uv
7 in
Specifications Xg
2 5/8 in | 2 7/8 in
