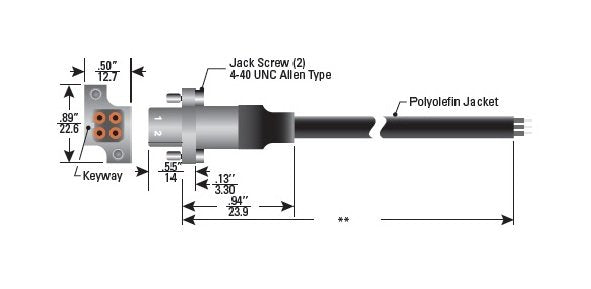

The 6 kVDC JR Series 4 Pin Shielded Rear Mount Receptacle Cable Assembly is a subminiature high voltage cable assembly designed for interconnecting low power mini-TWTs to power supplies in Radar or ECM systems. Ideal for applications such as laser systems, photomultiplier detection systems, night vision systems, and more. Featuring a highly flexible cable harness and built with Teledyne Reynold's Ready-to-Bond™ etched FEP or silicone coated cable, this assembly ensures efficient high voltage transmission. With a braided shield or optional NOMEX® woven jacket, thermoplastic insulator, and nickel-plated aluminum bodies, this assembly guarantees durability and reliability in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Cable Wire Properties Jacketed
Yes
Contact Properties Contact Design
Spherical Radius
Contact Properties Contact Diameter
0.020 in
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Applicable Mate
178-9718
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Crimp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Jack Screw
Specifications Current Rating
5 A
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Jacket Material
Polyolefin
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
4
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Sealed Receptacle
Yes
Specifications Series
JR
Specifications Standardnon Standard
Nonstandard Part
Specifications Test Voltage At 70000 Ft
9 kVDC
Specifications Voltage Rating
6 kVDC
Specifications Wire Type
Shielded
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.050 in | 1.27 mm
Wire Specifications Operating Voltage
18 kVDC
Wire Specifications Part
178-8111
