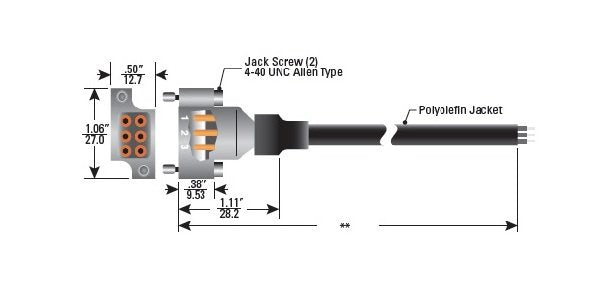

6 Pin Single-Ended Shielded Plug Cable Assembly (JR Series)
6 Pin Single-Ended Shielded Plug Cable Assembly (JR Series)
SKU:HIG-ef8302
High voltage, high contact density cable assembly designed for mini-TWT interconnections in Radar and ECM systems, offering superior flexibility and durability.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
6 Pin Single-Ended Shielded Plug Cable Assembly (JR Series)
$179.99
Quantity: 1
Claim Your Seller Account
6 Pin Single-Ended Shielded Plug Cable Assembly (JR Series)
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6 Pin Single-Ended Shielded Plug Cable Assembly from the JR Series is a subminiature high voltage solution tailored for interconnecting low power mini-TWTs to power supplies in Radar or ECM systems. With a voltage rating of 6 kVDC, operating temperature range of -55 to 125 °C, and a current rating of 5 A, this assembly guarantees reliable performance in demanding applications. Featuring a thermoplastic insulator, nickel-plated aluminum bodies, and Ready-to-Bond™ technology, it offers exceptional flexibility and durability. Ideal for laser systems, photomultiplier detection, and night vision applications, this cable assembly ensures secure high voltage connections with precision and efficiency.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Cable Wire Properties Jacketed
Yes
Contact Properties Contact Design
Split Finger, Closed Entry
Contact Properties Contact Diameter
0.020 in
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Applicable Mate
178-8362
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Jack Screw
Specifications Current Rating
5 A
Specifications Insulator Material
Plastic
Specifications Jacket Material
Polyolefin
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
6
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
JR
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
9 kVDC
Specifications Voltage Rating
6 kVDC
Specifications Wire Type
Shielded
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.050 in | 1.27 mm
Wire Specifications Operating Voltage
18 kVDC
Wire Specifications Part
178-8111
