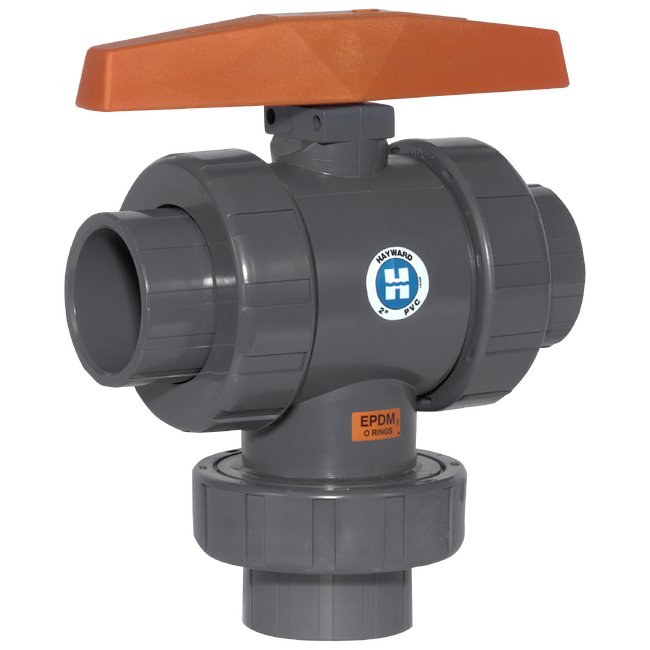

6" PVC 3-Way True Union Ball Valves with EPDM O-rings - Flanged End

Name: 6" PVC 3-Way True Union Ball Valves with EPDM O-rings - Flanged End
Brand: Hayward Flow Control
SKU: TRU-9e8ef9
Price: 89.99 USD
Availability: OutOfStock

SKU:TRU-9e8ef9

Premium 6" PVC 3-Way True Union Ball Valves with EPDM O-rings for secure flow control. Flanged end connections enhance durability.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your industrial plumbing systems with our premium 6" PVC 3-Way True Union Ball Valves from the TW Series. With EPDM O-rings and precise flanged end connections, these valves ensure secure and reliable flow control. Crafted for durability and efficiency, these valves are rated @ 150PSI and come with a Cv Factor of 340, making them ideal for varying flow configurations. Sizes ranging from 1/2" to 6" offer versatility, while meeting institutional procurement standards for seamless integration.

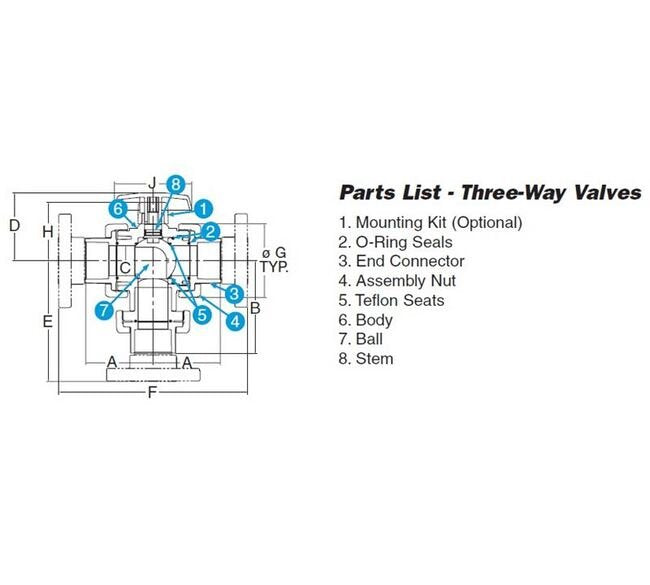

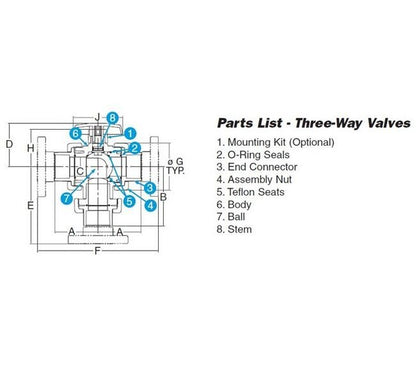

Product Specifications

Specifications A

6.95 in | 176.40 mm

Specifications Body Material

PVC

Specifications C

4.00 in | 101.60 mm

Specifications Cv Factor

340

Specifications D

8.02 in | 203.71 mm

Specifications E

11.25 in | 285.75 mm

Specifications End Connection

Flanged

Specifications F

20.25 in | 514.35 mm

Specifications G

8.56 in | 217.42 mm

Specifications H

8.88 in | 225.55 mm

Specifications J

10.50 in | 266.70 mm

Specifications Seals

EPDM

Specifications Size

6" PVC 3-Way True Union Ball Valves with EPDM O-rings - Flanged End
