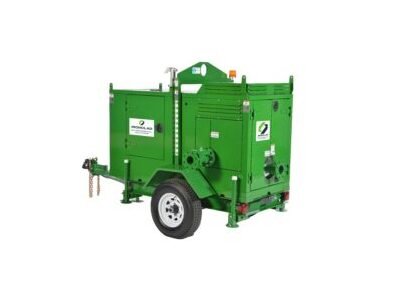

6" Sound Attenuated Prime Assisted Vacuum Pump by IRONCLAD Environmental Solutions - DHV Series
6" Sound Attenuated Prime Assisted Vacuum Pump by IRONCLAD Environmental Solutions - DHV Series
SKU:PUM-f33ba1
Quiet, efficient 6" Sound Attenuated Prime Assisted Vacuum Pump for high-flow applications. Tier IV diesel engine, solid handling, and self-priming design for construction and municipal projects.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
6" Sound Attenuated Prime Assisted Vacuum Pump by IRONCLAD Environmental Solutions - DHV Series
$7,499.99
Quantity: 1
Claim Your Seller Account
6" Sound Attenuated Prime Assisted Vacuum Pump by IRONCLAD Environmental Solutions - DHV Series
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the stringent noise regulations with our 6" Sound Attenuated Prime Assisted Vacuum Pump from the DHV Series. Operating quietly at or below 70 dBA, this pump offers efficient performance for high-flow applications up to 2,700 gpm and heads to 195 feet. Featuring a Tier IV diesel engine, self-priming capabilities, and solid handling design, this pump ensures minimal environmental impact and maximum productivity, making it ideal for construction and municipal projects. With a robust construction and easy maintenance, this pump guarantees reliability and compliance with industry standards.
Product Specifications
Additional Information
Rent high-quality pumps available for all kinds of projects and pumping needs.Pumping projects don't work 9-to-5 schedules, which is why we offer 24/7 on-call staff to provide you with immediate service, equipment, and answers, on your schedule.Our current fleet of diesel-driven centrifugal and electric submersible pumps are available for immediate pickup or delivery, along with our other amazing products including an extensive supply of pipes, hoses, berms and manifolds. No job is too big or too small for IRONCLAD Environmental Solutions. Trust IRONCLAD Environmental Solutions rental pumps to:Provide extremely fast priming from our dry prime diesel pump fleetEliminate discharge of pumping effluent onto the groundEliminate the need to fill up pump housing with water to obtain original prime at startupProvide sound attenuation for applications that require low decibel levelsAsk Our Techs. From municipal power to environmental, petrochemical to maritime and beyond-we're the answer you need.Need an expert's opinion? Need industrial pump support? Have a dewatering challenge? Our techs are available to answer even your toughest questions on tanks, pumps, filtration, waste management, roll-offs, and more.Need a basic maintenance item like a filter or belt? Or maybe you need a complete engine/pump rebuild? Our extensive inventory and professionally-trained diesel and pump mechanics are here to assist you with all of your needs. Let us know how we can help you today.
Construction
Pump casing: Heavy-duty Class 30 cast ironImpeller: Dynamically balanced, non-clogging, enclosed, CD4MCu, with rear-equalizing vanes to reduce axial loading and prolong seal and bearing lifeMechanical Seal: 2.5" run dry, grease lubricated with Tungsten Carbide rotating and Silicon Carbide stationary seal faces. Single inside mounted, non-pusher type with self-adjusting elastomeric bellows. All other components are 304 stainless steel and Fluorocarbon (FKM).Head: Back pull out design, heavy-duty class 30 cast iron with tapered bore designBearing and Frame: 30 cast iron, heavy-duty grease lubricatedShaft: 17-4 pH stainless steel fitted with renewable 416 stainless steel sleeve
Dimensions Impeller Diameter
12 in
Engine Specifications Engine Displacement
275 in³
Engine Specifications Engine Model
John Deere 4045T
Engine Specifications Engine Power At 2000 Revolution Per Minute
72 hp
Engine Specifications Engine Type
4-Cylinder, In-Line, 4-Cycle, Water Cooled, Direct-Injected Turbo-Charged, Interim Tier IV Diesel
Engine Specifications Fuel Economy At 1600 Revolution Per Minute
0.397 lb/hp·hr
Engine Specifications Fuel Economy At 1800 Revolution Per Minute
0.395 lb/hp·hr
Engine Specifications Fuel Economy At 2000 Revolution Per Minute
0.397 lb/hp·hr
Engine Specifications Maximum Operating Time At 1600 Revolution
49 hours
Engine Specifications Maximum Operating Time At 1800 Revolution
36 hours
Engine Specifications Maximum Operating Time At 2000 Revolution
28 hours
Features
John Deere 4045TF290-74 engineFully automatic, dry priming to 28 feetRemovable drop-on sound enclosure, constructed of 18 gauge solid galvanneal shell and 1.5" thick, 8lb density mineral woolLockable doors Emergency Engine Shutdown Button
Technical Specs Brands
IRONCLAD Environmental Solutions
Technical Specs Flow Rates
2700 gpm
Technical Specs Fuel Consumption At 2000 Revolution Per Minute R
3.97 gal/h
Technical Specs Fuel Tank Capacity
114 gal
Technical Specs High Heads
0 to 195 ft
Technical Specs Maximum Operating Speed
2000 rpm
Technical Specs Maximum Operating Temperature
200 ºF
Technical Specs Maximum Suction Lift
28 ft
Technical Specs Maximum Working Pressure
130 psi
Technical Specs Note For Operating Noise
Measured at 7 meters at full speed
Technical Specs Operating Noise
70 dBA
Technical Specs Solids Handling
3 in
Uses
Construction or Municipal projects where local laws and regulations limit noise pollutionUsed in conjunction with IRONCLAD Environmental Solutions filtration and tank rentals for total rental solution
Vacuum Pump Specifications Air Handling Capacity
97 scfm
Vacuum Pump Specifications Casing
Class 30 Cast Iron
Vacuum Pump Specifications Vacuum Pump
Dry, Rotary Claw, Air Cooled, Oil Less, Direct Drive (5.4 hp)
Vacuum Pump Specifications Vacuum Pump Maximum Working Pressure
15 psi
