6" x 4" NPT Cast Iron Centrifugal Pump, 30 HP TEFC
6" x 4" NPT Cast Iron Centrifugal Pump, 30 HP TEFC
SKU:PRO-489a71
Powerful 30 HP TEFC Centrifugal Pump for OEM & Industrial Applications
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
6" x 4" NPT Cast Iron Centrifugal Pump, 30 HP TEFC
$5,699.99
Quantity: 1
Claim Your Seller Account
6" x 4" NPT Cast Iron Centrifugal Pump, 30 HP TEFC
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

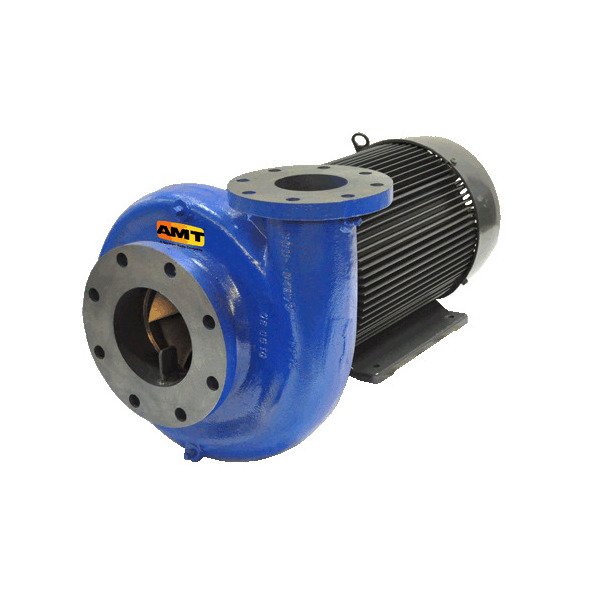

The 6" x 4" NPT Cast Iron Centrifugal Pump with a 30 HP TEFC motor is a heavy-duty solution for OEM, Industrial/Commercial, and processing applications. Designed for continuous-duty operations, this pump is ideal for circulation, chemical processing, and heating/cooling systems. With a robust construction, sealed ball bearings, and easy servicing design, it ensures reliability, efficiency, and low maintenance. Compliant with industry standards, this pump is suitable for use with nonflammable liquids.
Product Specifications
Curves 0

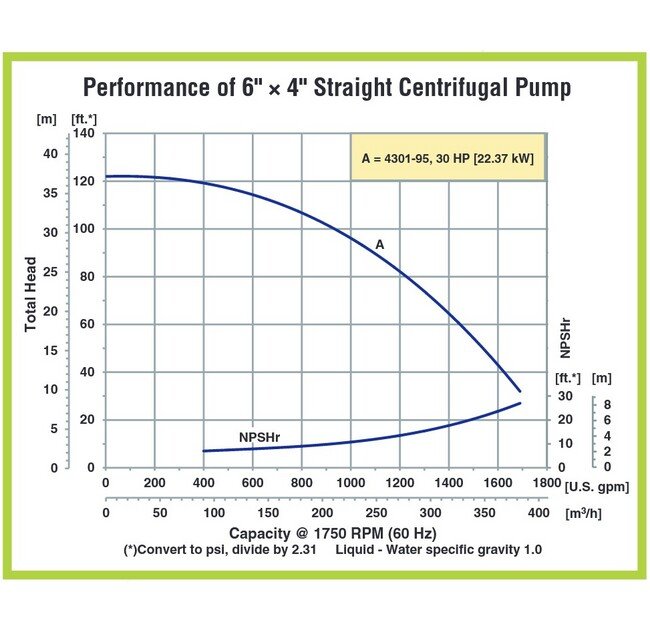

Performance Curves
Dimensions 0

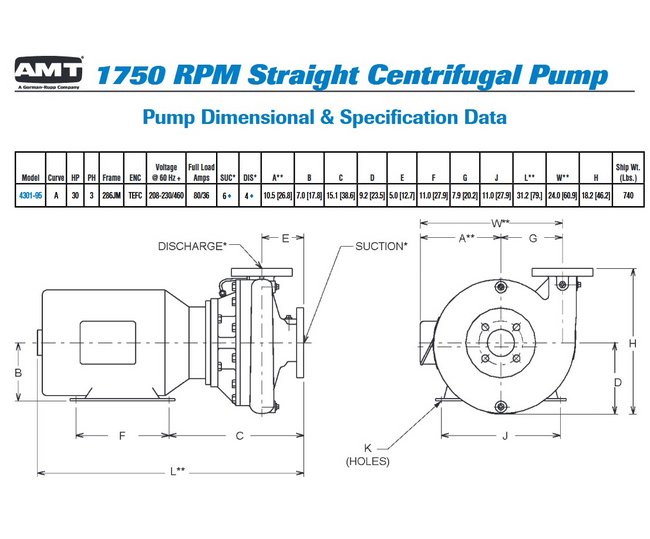

Dimensions
Specifications 0
Cast Iron ConstructionSilicon Bronze Precision Cast Dynamically Balanced ImpellerViton® Silicon Carbide/Carbon Mechanical SealBronze Case Wear Ring6" x 4" 125 Lb. 8-Bolt Flanged Suction Port & 4-Bolt Flanged Discharge PortPull-From-Rear Design Permits Easy Servicing Without Disturbing Piping1/4" NPT Gauge Taps on Suction & Discharge Ports For System MonitoringBronze Shaft Sleeve to Protect Motor ShaftMaximum Casing Pressure 175 PSIMaximum Temperature 200° FIncludes Seal Flush/Air Relief ValveFront Drain PlugsTEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors
Specifications Height
18 in | 462.28 mm
Specifications Inlet Size
6 FNPT in
Specifications Length
31 Inch | 79.25 Centimeter | 2.60 ft | 31 in | 0.7925 m | 792.48 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Moc
Cast Iron
Specifications Sku
AT430195SP
Specifications Weight
244.94 Kilogram | 244.94 kg | 540 lbs
Specifications Width
24 Inch | 24 in | 0.6096 m | 609.60 mm
