60-80A 3 Pole T-Range Contactor with AC Operating Coil
60-80A 3 Pole T-Range Contactor with AC Operating Coil
SKU:DPC-94920c
Reliable 60-80A 3 Pole T-Range AC Contactor with maximum 50A inductive current. Compliant with BSEN60947, IEC60947, and UL standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
60-80A 3 Pole T-Range Contactor with AC Operating Coil
$129.99
Quantity: 1
Claim Your Seller Account
60-80A 3 Pole T-Range Contactor with AC Operating Coil
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 60-80 Ampere (A) 3 Pole T-Range Contactor is a versatile solution designed by Shamrock Controls for industrial applications requiring reliable switching of up to 80A of AC power. With a maximum inductive current of 50A and various power ratings across single and three-phase voltages, this contactor ensures efficient operation. It conforms to standards like BSEN60947, IEC60947, and UL, offering robust protection with features like normally closed/open auxiliary contacts and a VDE 0106 protection level. This contactor supports a wide frequency range, ensuring compatibility across different systems.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Average Operating Time At Rated
8 to 12 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
6 cycles
Control Circuit Characteristics Operational Control Voltage For
0.8 to 1.1 Uc
Control Circuit Characteristics Rated Control Circuit Voltage Uc
12 to 660 V

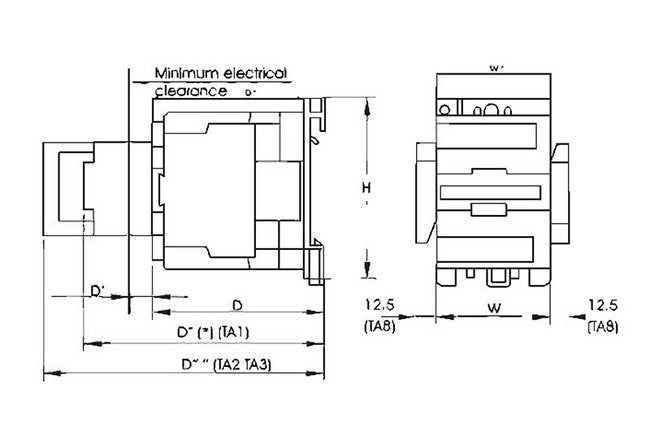

Dimensions Depth D
114 mm
Dimensions Dimension C
114 mm
Dimensions Dimension D 008
124 mm
Dimensions Dimension D Lacdk1
166 mm
Dimensions Dimension D Ta1
145 mm
Dimensions Dimension G
40 mm
Dimensions Height H
127 mm
Dimensions Minimum Electrical Clearance D
12 mm
Dimensions Width W
75 mm
Integral Auxillary Contact Characteristics Rated Operational Vol
0 to 660 V
Pole Characteristics Maximum Power Rating At Single Phase 120 Vo
3 hp
Pole Characteristics Maximum Power Rating At Single Phase 230 Vo
7.5 hp
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
15 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
15 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
40 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
40 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
3.7 W
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
500 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
900 A
Pole Characteristics Rated Insulation Voltage
1000 V
