60-Gallon Horizontal Air Receiver Tank with 200 psi MAWP

Name: 60-Gallon Horizontal Air Receiver Tank with 200 psi MAWP
Brand: Compressed Air Systems, Inc.
SKU: REC-9c87ca
Price: 599.99 USD
Availability: OutOfStock

SKU:REC-9c87ca

Durable 60-Gallon Horizontal Air Receiver Tank with 200 psi MAWP for industrial applications.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

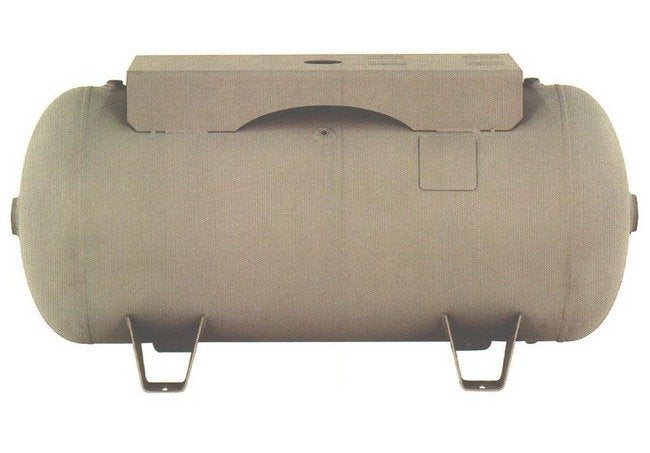

The 60-Gallon Horizontal Air Receiver Tank is a robust solution designed for industrial applications, offering a nominal capacity of 60 gallons (8.02 ft³) and a maximum working pressure (MAWP) of 200 psi. Featuring dimensions of 24" (L) x 20" (O.D.) x 24.44" (H), this tank is equipped with wing feet for stable installation. With a durable construction and top plate of 0.18 x 13.5 x 30, this air receiver ensures reliable air storage and distribution in your compressed air system.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Cross Reference

A10030

Specifications Dimension A

7.75 inches

Specifications Dimension B

16.25 inches

Specifications Dimension C

12.00 inches

Specifications Dimension D

24.00 inches

Specifications Dimension E

16.50 inches

Specifications Dimension F

2.31 inches

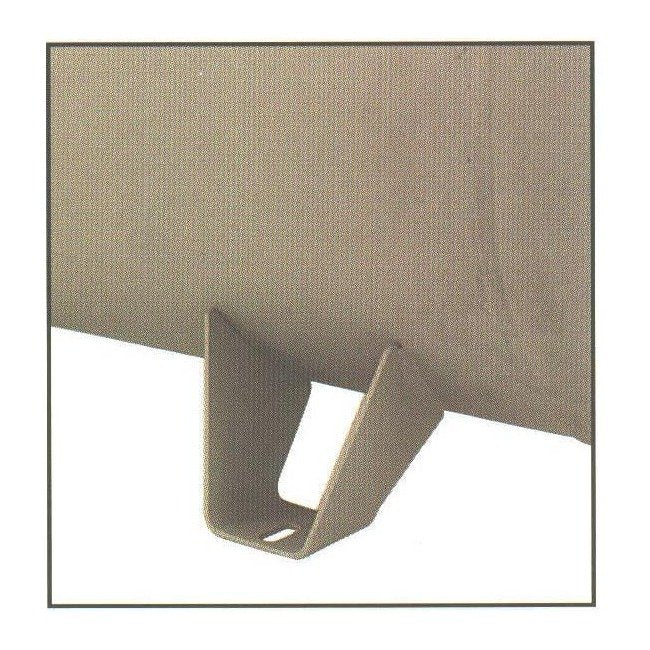

Specifications Feet

Wing Feet

Specifications Ht

24.44 inches

Specifications Mawp

200 psi

Specifications Nominal Capacity

60 gal | 8.02 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

3/4 inches

Specifications Npt Opening J

1/2 inches

Specifications Od

20.00 inches

Specifications Size

9/16 x 1 1/2 inches

Specifications Tl

48.00 inches

Specifications Top Plate

0.18 x 13.5 x 30

Specifications Tw

204
