60-Gallon Horizontal Air Receiver with 300 psi MWP and Legs

Name: 60-Gallon Horizontal Air Receiver with 300 psi MWP and Legs
Brand: Compressed Air Systems, Inc.
SKU: REC-392a6c
Price: 579.99 USD
Availability: OutOfStock

SKU:REC-392a6c

Durable 60-Gallon Horizontal Air Receiver with 300 psi MWP and Legs, ideal for storing compressed air.

$579.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

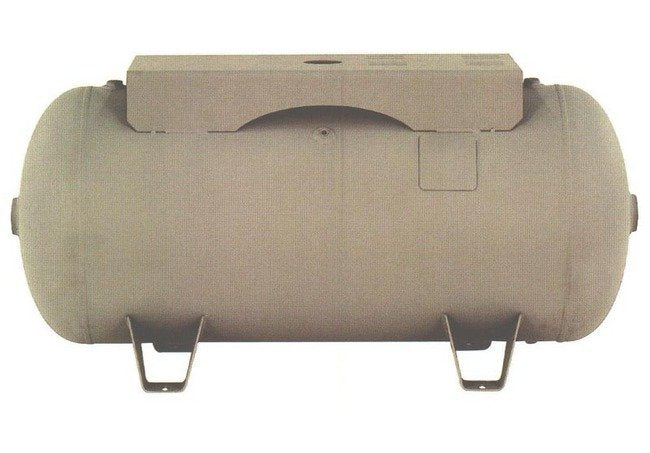

The 60-Gallon Horizontal Air Receiver with a maximum working pressure of 300 psi is a reliable and sturdy solution for storing compressed air. This air receiver, equipped with legs for stability, has a nominal capacity of 60 gallons (8.02 ft³) and dimensions of 24.44" (HT) x 24.00" x 48.00". With N.P.T. openings of 2 inches, 3/4 inches, and 1/2 inches, this receiver tank is designed for easy installation and efficient operation. The top plate measures 0.18" x 13.5" x 30" for added durability.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Dimension A

7.75 inches

Specifications Dimension B

16.25 inches

Specifications Dimension C

12.00 inches

Specifications Dimension D

24.00 inches

Specifications Dimension E

16.50 inches

Specifications Dimension F

2.31 inches

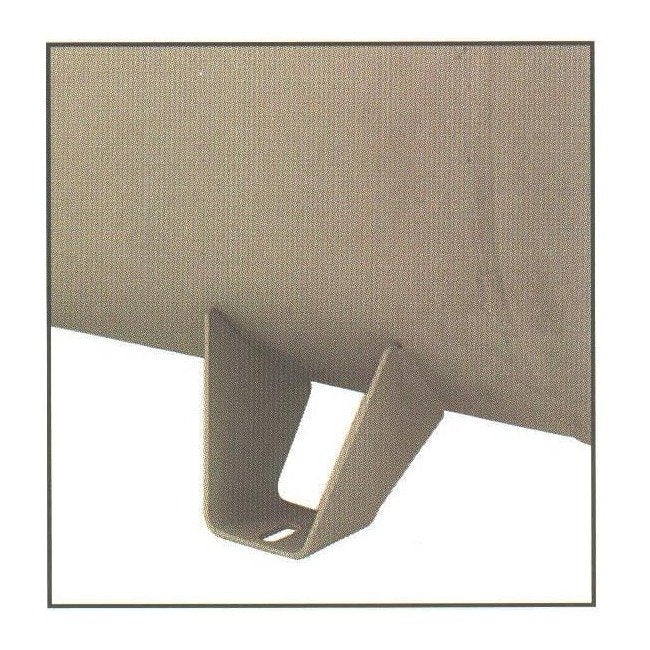

Specifications Feet

Wing Feet

Specifications Ht

24.44 inches

Specifications Mawp

300 psi

Specifications Nominal Capacity

60 gal | 8.02 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

3/4 inches

Specifications Npt Opening J

1/2 inches

Specifications Od

20.00 inches

Specifications Size

9/16 x 1 1/2 inches

Specifications Tl

48.00 inches

Specifications Top Plate

0.18 x 13.5 x 30

Specifications Tw

225
