60 Gallon Vertical Air Receiver - ASME Certified
60 Gallon Vertical Air Receiver - ASME Certified
SKU:VER-acdcc3
Reliable 60 gal Vertical Air Receiver, ASME Certified, 200 psi, 450 ºF, NPT Threaded, Grey Oxide Finish - Ideal for Industrial Use
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
60 Gallon Vertical Air Receiver - ASME Certified
$499.99
Quantity: 1
Claim Your Seller Account
60 Gallon Vertical Air Receiver - ASME Certified
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 60 Gallon Vertical Air Receiver is meticulously crafted to meet ASME standards, ensuring top-notch quality for industrial applications. With a design pressure of 200 psi and a standard design temperature of 450 ºF, this air receiver is built to deliver reliable performance under high-pressure conditions. Its 20-inch diameter and sturdy construction make it a durable and efficient choice for compressed air storage. The grey oxide primer finish adds an extra layer of protection, while NPT threaded openings provide ease of installation. Ideal for industrial settings requiring compliant and high-capacity air storage solutions.

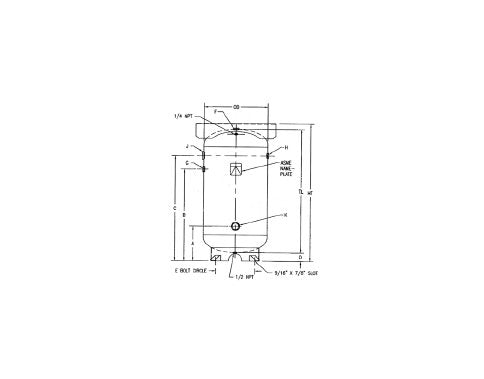

Product Specifications
Dimensions Dimension A
13.75 in
Dimensions Dimension B
33.75 in
Dimensions Dimension C
39.75 in
Dimensions Dimension D
2.75 in
Dimensions Dimension E
17 in
Dimensions Dimension F
0.75 in
Dimensions Dimension G
0.75 in
Dimensions Dimension H
0.75 in
Openings Opening I
2 in
Openings Opening J
2 in
Openings Opening K
3/4 in
Openings Opening L
3/4 in
Openings Opening M
1/2 in
Openings Opening N
2 in
Openings Opening O
3/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
20 in
Specifications Height
50.75 in
Specifications Industry Standards
ASME
Specifications Length
48 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
60 gal
