60-Gallon Vertical Air Receiver with Top Plate, 200-psi MWP
60-Gallon Vertical Air Receiver with Top Plate, 200-psi MWP
SKU:REC-e78a24
High-quality 60-Gallon Vertical Air Receiver with Top Plate, 200-psi MWP for industrial air storage needs. Maximize efficiency!
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
60-Gallon Vertical Air Receiver with Top Plate, 200-psi MWP
$699.99
Quantity: 1
Claim Your Seller Account
60-Gallon Vertical Air Receiver with Top Plate, 200-psi MWP
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

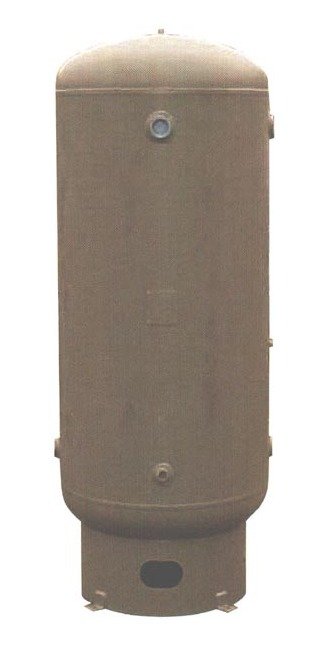

The 60-Gallon Vertical Air Receiver with Top Plate is a sturdy and reliable air storage tank designed for high-pressure industrial applications. With a maximum working pressure (MWP) of 200 psi, this receiver tank ensures optimal air storage capacity and efficient distribution within your compressed air system. Measuring 52.06 inches in height and 20.00 inches in outer diameter, this tank offers a nominal capacity of 60 gallons, equivalent to 8.02 cubic feet. The top plate dimensions of 0.18 x 13.5 x 30 provide a secure mounting platform for additional equipment. Invest in this vertical air receiver for enhanced operational efficiency and secure air storage.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Cross Reference
A10044
Specifications Dimension A
13.75 inches
Specifications Dimension B
33.75 inches
Specifications Dimension C
39.75 inches
Specifications Dimension D
2.75 inches
Specifications Dimension E
17.00 inches
Specifications Ht
52.06 inches
Specifications Mawp
200 psi
Specifications Nominal Capacity
60 gal | 8.02 ft³
Specifications Npt Opening F
3/4 inches
Specifications Npt Opening G
3/4 inches
Specifications Npt Opening H
3/4 inches
Specifications Npt Opening J
2 inches
Specifications Npt Opening K
2 inches
Specifications Od
20.00 inches
Specifications Tl
48.00 inches
Specifications Top Plate
0.18 x 13.5 x 30
Specifications Tw
192
